Product Details:
|
| Length: | 100meter | Mating: | Push-pull Self-latching System |
|---|---|---|---|
| Highlight: | 100M SMPTE Fiber Connector,SMPTE Fiber Connector 100M,100M hybrid fiber optic cable |
||

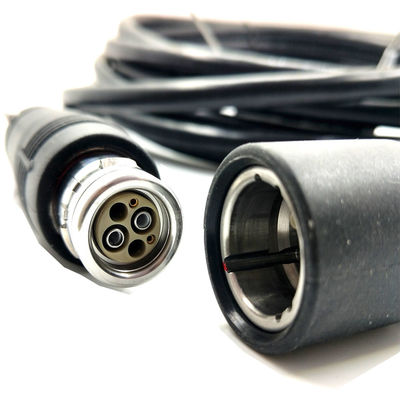

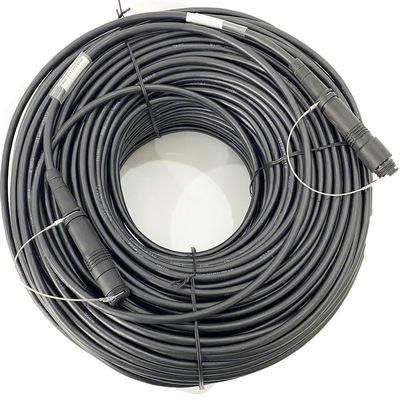

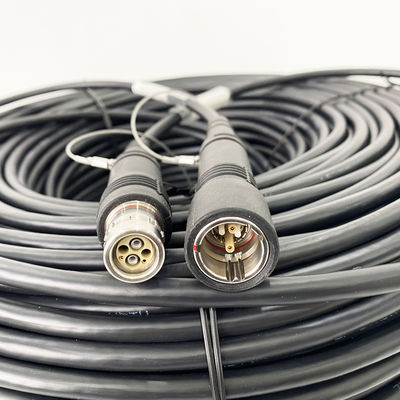

FUW-PUW series cable also known as 3K.93C connector. The Connector is compatible with SMPTE( SMPTE304 and SMPTE311M), ARIB(BTA S-1005B), and EBU standards.
High reliability--We add more armored protection in the cable which makes the cable more robust than normal cable.
Specification:
| Item | Description | Parameter |
| 1 | Optical Fiber Quantity | 2 |
| 2 | Optical Fiber Type | Singal Mode Fiber9/125um |
| 3 | Ferrule Inner diameter | 125um |
| 4 | Average Insertion Loss | <0.1dB |
| 5 | Return Loss | <-45dB |
More Model No. avaliable
Contact us for more details.
