Product Details:
|
| Type: | Audio To Fiber Converter | Use: | Broadcast/Studio |
|---|---|---|---|
| Warranty Time: | 1year | Application: | Boardcast |
| Highlight: | XLR Audio To Fiber Converter,8ch Audio To Fiber Converter,Balanced audio over fiber extender |
||

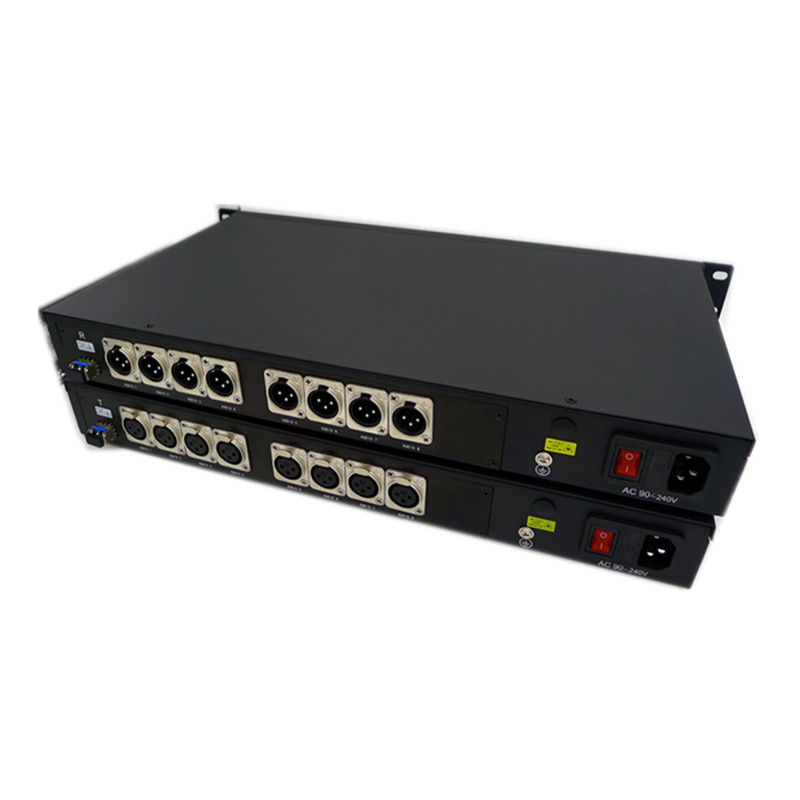

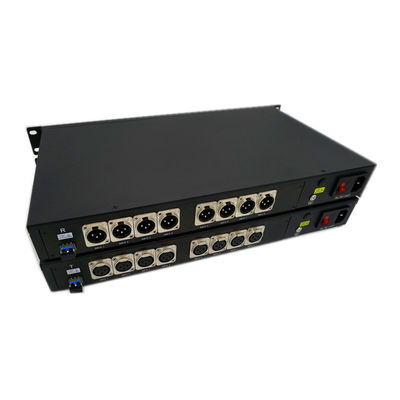

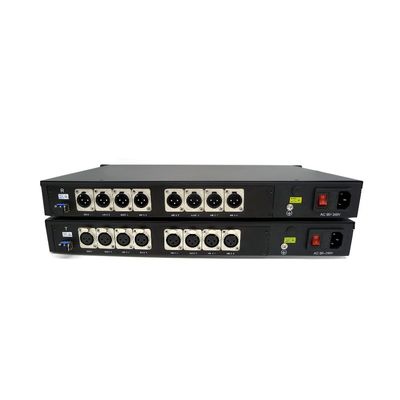

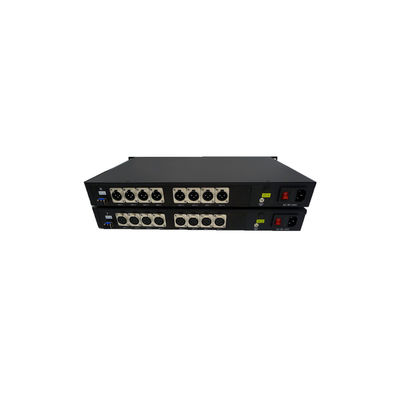

Audio to Fiber 8 Ch XLR Audio to Fiber

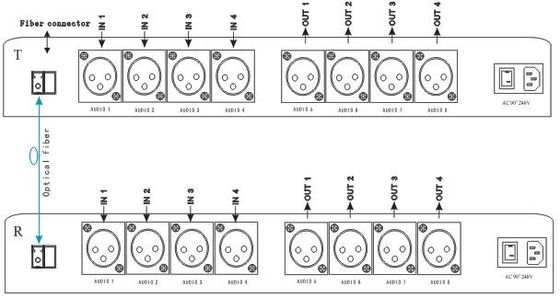

8 ch balanced audio over fiber series support 8 Channel balanced audio 16-bit (24-bit, 32-bit also available by customized) digitally encoded broadcast quality balanced audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST, SC or LC optical connectors is optional.
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.
Specifications
Optical:
|
Wavelength |
1310nm&1470nm~1610nm |
|
Output Power |
-9~ -3dBm / -5~0dBm |
|
Optic fiber |
50/125u multimode,62.5/125u multimode,9/125u single mode |
|
Rx sensitivity |
-25dBm |
|
Optical connector |
FC,ST,SC ,LC (optional) |
|
Distance |
0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM) |
Balanced Audio
|
Number of Channels |
8 |
|
Input Connector |
XLR(female) |
|
Output Connector |
XLR(male) |
|
Input / Output Impedance |
10K Ohm |
|
Input capacitance LINE inputs |
10 pF |
|
Max input/output voltage |
1.228Vp-p (+4dBu) |
|
Frequency Response |
20 Hz~24kHz @±3dB |
|
Sample Rates From |
48kHz |
|
SNR |
> 80dB |
Electrical & Mechanical
|
Power Adapter: |
AC 90V~240V |
|
Power Consumption: |
< 8W |
|
Installation |
19’’ 1U rack-mount chassis |
|
Shipping Weight: |
(include Transmitter & Receiver) 7kg |
Environmental
|
Operating Temperature: |
-20°C ~ +75°C |
|
Storage Temperature: |
-40°C ~ +85°C |
|
Relative Humidity: |
0% ~ 95% (non-condensing) |
|
MTBF: |
>100,000 hours |
