3.5mm Jack Fiber Optic Audio Converter Providing OEM Service

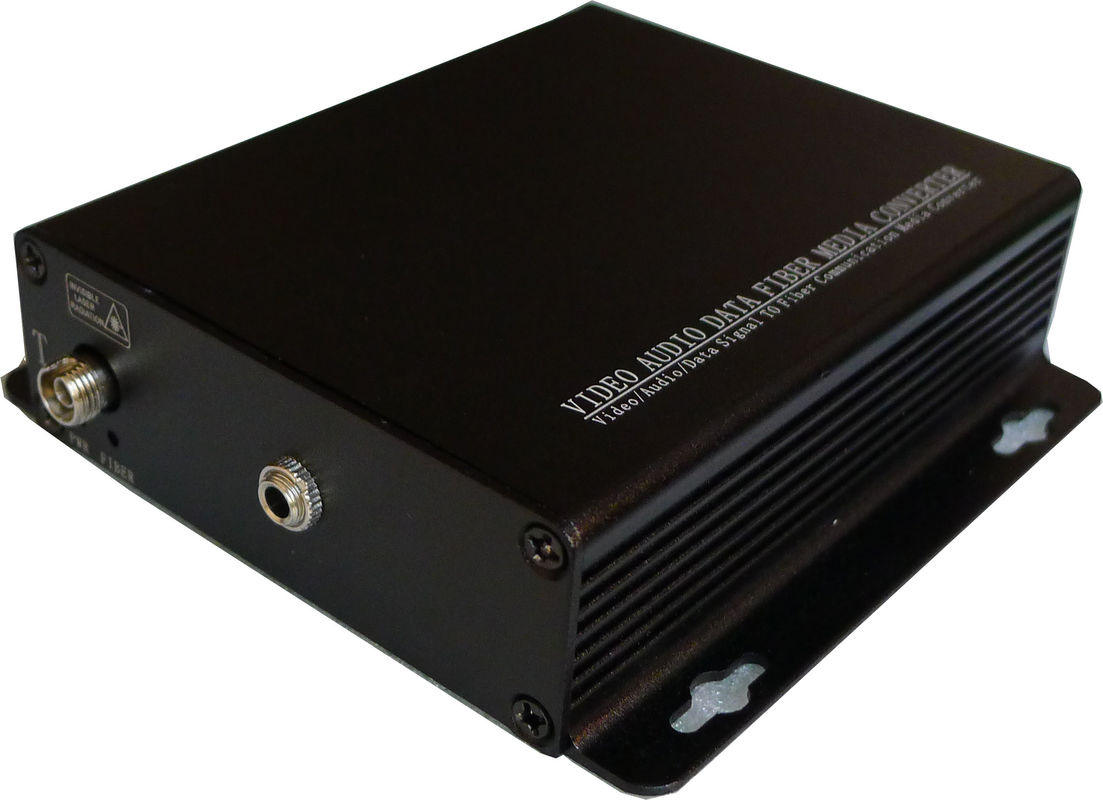

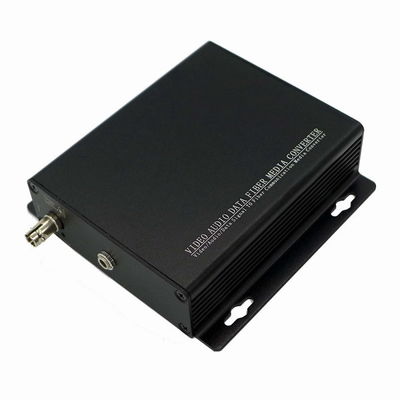

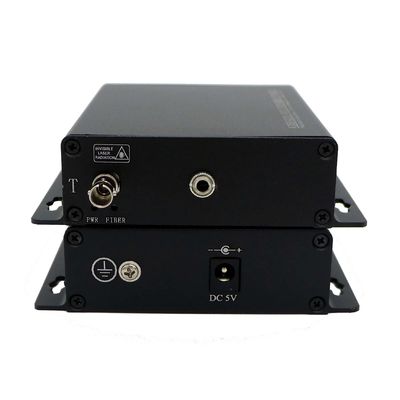

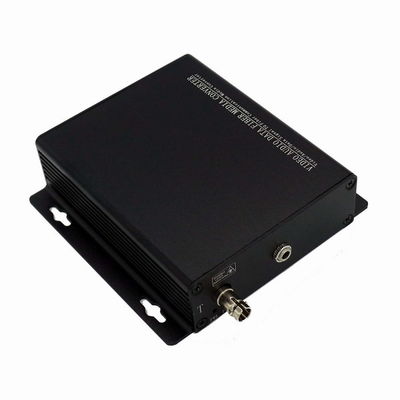

3.5mm Jack audio to Fiber Extender
3.5mm Stereo To Fiber support 1~8 channels 3.5mm Stereo over one multi-mode or single-mode optical fiber. These fiber optic transmitters and fiber optic receivers are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST, or SC optical connectors are optional.
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system's operating status.
Features
• 24-Bit Digitally Encoded Audio
• Support Point-to-Point or Daisy-Chain connection
• Multimode Fiber transmits up to 4km without Optical Attenuation
• Single-Mode Fiber transmits up to 100km without Optical Attenuation
• No EMI, RFI, Cross Talk, or Video Distortion, and no ground loops
• LED Indicators for Instant System Monitoring
• Standalone or Rack Mount in FVC14 Chassis
• Produce according to customer's specifications, providing OEM
Specifications
| Audio | |
| Input/output Impedance | 600ohm(unbalance) |
| Max input/output voltage | 3.0Vp-p |
| Frequency Response | 10 Hz～29kHz @±3dB |
| SNR | > 70dB |
| Connector | 3.5mm Stereo |
| Electrical & Mechanical | |
| Input Power Requirements: | DC 5V@2A |
| Power Adapter: | AC 90V~240V |
| Power Consumption: | < 3W |
| Stand-Alone Dimensions: | 104mm × 104mm × 28mm |
| Shipping Weight: | (include Transmitter & Receiver ) 0.8kg |
| Environmental | |
| Operating Temperature: | -20°C ~ +75°C |
| Storage Temperature: | -40°C ~ +85°C |
| Relative Humidity: | 0% ~ 95% (non-condensing) |
| MTBF: | >100,000 hours |
