Product Details:
|
| Audio Format: | AES/EBU | Channel: | 4CH |
|---|---|---|---|
| Fiber Type: | Single Or Multi Mode | Fiber Quantity: | Single Fiber |
| Distance: | 20KM + Over Single Mode Fiber 、2KM Over Multi Mode Fiber | Optical Interface: | ST,FC.SC.LC Optional |
| Highlight: | EBU Fiber Optic To Analog Audio Converter,AES Fiber Optic To Analog Audio Converter,4ch Fiber Audio To Analog Converter |
||

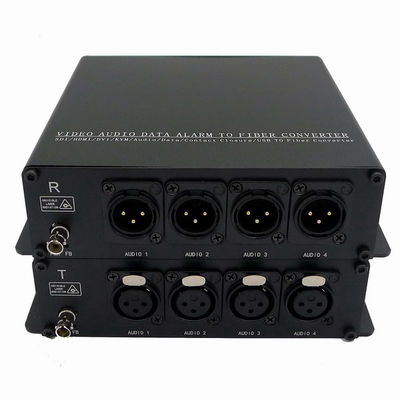

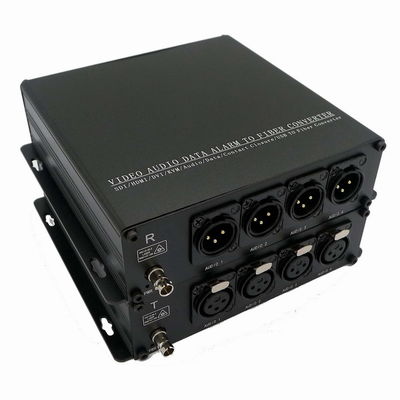

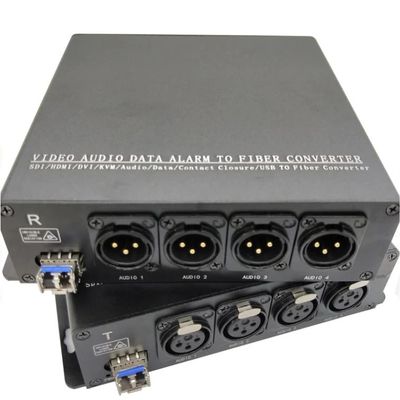

AES EBU Fiber Optic To Analog Audio Converter 4ch With Single Fiber
AES/EBU Audio to Fiber Extenders 4ch AES/EBU Audio to Fiber Extender
4ch AES/EBU audio over fiber series support 4 channels AES/EBU digital audio over one multi-mode or single-mode optical fiber. Balanced AES/EBU input and output, can be self-adaptive different sampling frequency. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.
Specifications
Opitcal:
| Wavelength | 1310nm&1470nm~1610nm |
| Output Power | -10~ -5dBm / -5~0dBm |
| Optic fiber | 50/125u multimode,62.5/125u multimode,9/125u single mode |
| Rx sensitivity | -25dBm |
| Optical connector | FC,ST,SC ,LC(optional) |
| Distance | 0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM) |
Balanced Audio
| Number of Channels | 4 |
| Input Connector | XLR(female) |
| Output Connector | XLR(male) |
| Input / Output Impedance | 110 Ohm |
| Max input/output voltage | 0.2～5 Vp-p |
| Sampling Frequency | self-adaption |
| Jitter | <0.005UIp-p |
Electrical & Mechanical
| Input Power Requirements: | DC 5V@2A |
| Power Adapter: | AC 90V~240V |
| Power Consumption: | < 5W |
| Stand-Alone Dimensions: | 168mm × 154mm × 45mm |
| Shipping Weight: | (Include Transmitter & Receiver) 2.5kg |
Environmental
| Operating Temperature: | -20°C ~ +75°C |
| Storage Temperature: | -40°C ~ +85°C |
| Relative Humidity: | 0% ~ 95% (non-condensing) |
| MTBF: | >100,000 hours |
Standalone Dimensions:
Audio connection diagram
