Product Details:
|
| Audio Interface: | RCA | Audio Channel No.: | 2 Or More |
|---|---|---|---|
| Fiber Type: | Single Or Multi Mode | Optical Interface: | ST,FC.SC.LC Optional |
| Distance: | 20KM + Over Single Mode Fiber 、2KM Over Multi Mode Fiber | Wavelength: | 1310nm Or Other |
| Highlight: | RCA Audio To Fiber Converter,ST Interface Audio To Fiber Converter,FC Interface Fibre Optic To RCA Converter |
||

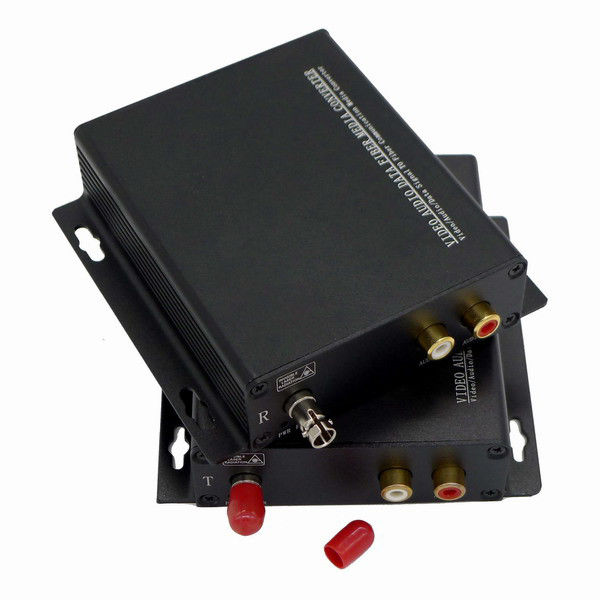

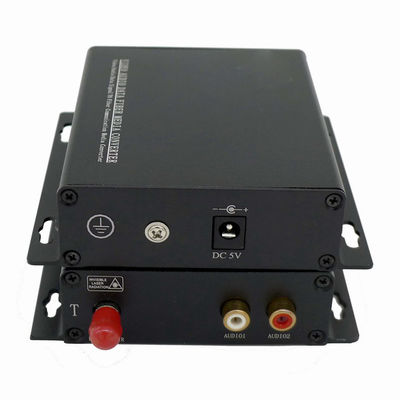

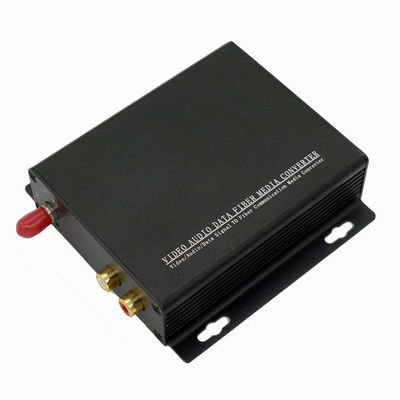

RCA Audio To Fiber Converter 2 Channels ST FC SC LC Optional Interface
RCA audio to Fiber converter 2Channel RCA
The OptoElectronics Fiber RCA audio over Fiber units is able to send line-level audio over fiber simply and easily over long distances without using traditional copper wiring. 2-channel RCA audio to fiber with a compact form factor can be easily bolted down.
Using fiber allows the audio signals to be sent over long distances without losing any quality in the audio signal.
Features
Completely digital fiber transmission platform
No configuration or adjusting needed
User-friendly design
Plug and play
Specifications:
Opitcal:
| Wavelength | 1310nm&1470nm~1610nm |
| Output Power | -14~ -8dBm / -5~0dBm |
| Optic fiber | 50/125u multimode,62.5/125u multimode,9/125u single mode |
| Rx sensitivity | -30dBm |
| Optical connector | FC,ST,SC (optional) |
| Distance | 0~2KM (MM) / 0~20KM (SM) |
Audio
| Input/output Impedance | 600ohm(unbalance) |
| Max input/output voltage | 3.0Vp-p |
| Frequency Response | 10 Hz～29kHz @±3dB |
| SNR | > 70dB |
| Connector | Standard terminal lead |
| Number of Channels | 1 BIDI |
Electrical & Mechanical
| Input Power Requirements: | DC 5V@2A |
| Power Adapter: | AC 90V~240V |
| Power Consumption: | < 3W |
| Stand-Alone Dimensions: | 104mm × 104mm × 28mm |
| Shipping Weight: | (include Transmitter & Receiver ) 0.8kg |
Environmental
| Operating Temperature: | -20°C ~ +75°C |
| Storage Temperature: | -40°C ~ +85°C |
| Relative Humidity: | 0% ~ 95% (non-condensing) |
| MTBF: | >100,000 hours |
