Product Details:
|
| Part Number: | BY-EFP-Ikegami | SDI Types: | 3G/HD/SD-SDI,DVB-ASI |
|---|---|---|---|
| Standards: | SMPTE 424M, 344M, 292M, 259M, DVB-ASI | Support Devices: | Ikegami Camera & OCP-100 Series |
| Distance: | 10 Kilometers(SMF)/ 300 Meters(MMF) | Fiber Connector: | Lemo SMPTE 304 3K.93C |
| Battery Plate Type: | V Or A Type | Power Supply: | Lemo SMPTE 304/311 3K.93C Hybrid Cable |
| Function Selection: | Please Check The Ordering Information | Port: | FOB Shenzhen |
| Highlight: | BY-EFP-Ikegami Base Station fiber optic camera system,BY-EFP-Ikegami Camera Adapter fiber optic camera system,BY-EFP-Ikegami 3G camera fiber converter |
||

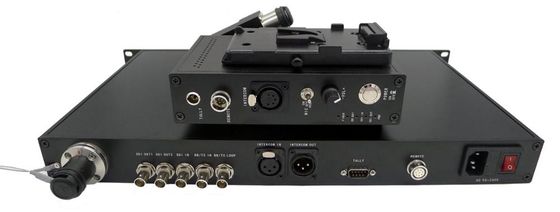

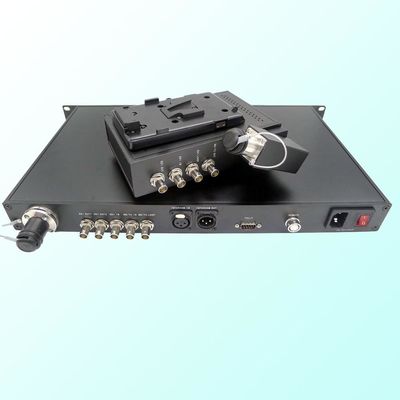

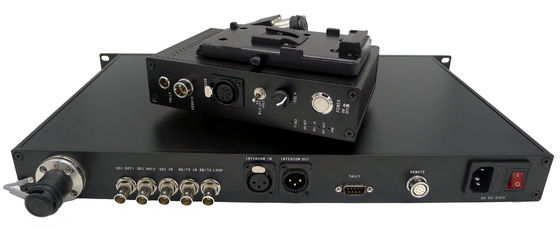

Fiber Optic EFP (Camera Adapter + Base Station) For Live Studio Production with HDTV SDI/Ikegami OCP-100/Genlock/Intercom
BY-EFP-Ikegami for Ikegami Camera includes a Camera Optic Adaptor and a Optic Base Station. The system
transports 1 ch 3G/HD-SDI signal from the Ikegami camera to the Base Station, 1 ch Reverse 3G/HD-SDI,
Genlock or TC/BB, Remote control(Connect Ikegami Operation Control Panel:OCP-100,/OCP200/OCP-300/OCP-
399), intercom (Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be
connected intercom main station), tally(One color or two colors can be selected), Remote camera power
supply (15V DC up to 150 Watts). The system puts all of the signals needed for multi-camera 3G/HD-SDI
production on a SM tactical or SMPTE hybrid cable, insuring robust, trouble-free connectivity on any
studio or remote production.
Features:
A) Handles pathological pattern; Automatic cable equalization to ensure signal integrity
B) 1 Channel 3G-SDI signal over optic fiber, Supports SMPTE 424M, 344M, 292M, 259M, DVB-ASI
C) 1 Channel Reverse 3G SDI
D) Comprehensive Functions: BB/TC/TALLY/Remote Control/Intercom
E) V-mount or A-mount battery plate optional
F) Remote Powered by Lemo SMPTE 304/311 3K.93C; Remote camera power supply (14VDC up to 150 Watts), with insertion detection protection
Parameters:
Distance: 10 Kilometers (SMF) or 300 Meters (MMF)
Fiber type: 62.5/125um MMF,50/125um MMF, 9/125μm SMF
Fiber Connector: Lemo hybrid connector
SDI Connector: BNC
3G SDI Format:
1)All inputs and outputs are equalized and re-clocked
2)Pass all pathological patterns
3)SMPTE424M/292/259 and DVB-ASI compliance
4)Supports embedded audio and data signals
5)Support SD-SDI & HD-SDI & 3G-SDI, Support 270Mbps & 1.485Gbps & 2.97Gbps SDI Video
Dimension of Rx: 19" 1U rack mount (480 x 250 x 50 mm)
Gross.W: 10 Kg
Power Supply of Rx: AC 85-260V/50Hz
Working Temperature: 0 ℃~+85 ℃ ;
Relative Humidity: 0 ~ 95%
Application:
Television studio, mobile studio
EFP Electronic Field Production, major sporting events and large celebrations broadcast live
ENG camera (outdoor photo camcorders) upgraded to a EFP camera.
OB Van
Functions includes:
Note: add or remove some functions, please check the below Ordering Information
Panels and Interfaces:(please enlarge the same photo beside the headline)
Ordering Information:
Function Selections & Parameters:
