Product Details:
|
| Highlight: | 2CH 3G HD SDI,Ethernet Transmission 3G SDI,Broadcasting 3G HD SDI |
||
|---|---|---|---|

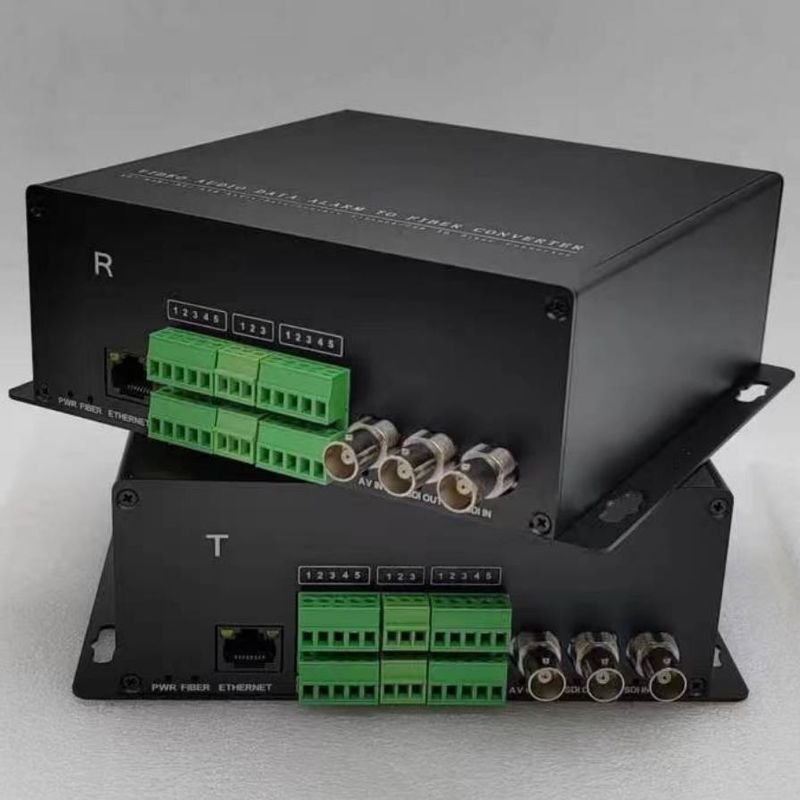

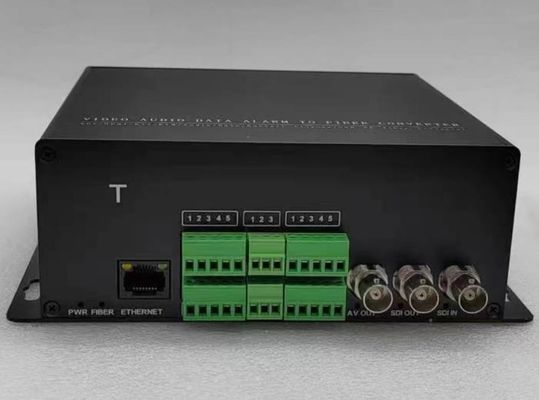

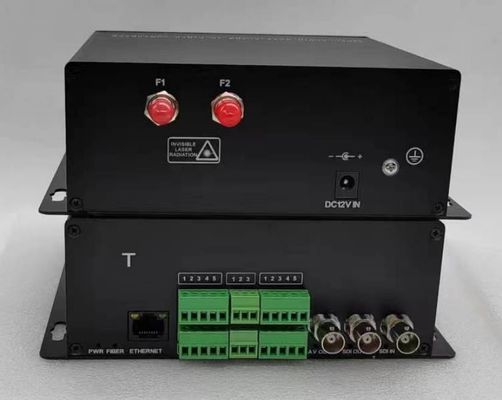

2CH 3G HD SDI With Ethernet Over Fiber Ethernet Transmission
2CH 3G SDI with Ethernet over fiber
FEATURES
· 1 channel forward 3G SDI 1channel backward 3G SDI and10/100M Ethernet transmission of digital video signal over optic fiber
· Handles pathological pattern
· Automatic cable equalization to ensure signal integrity
· Automatic reclocking 270Mbit/s - 1.48Gbit/s – 2.97Gbit/s
· Support signal type: 270Mbit/s to 3Gbit/s according to SMPTE 424M, SMPTE 292M, and SMPTE 259M standards
· Long transmission capability of at least 20 km(6.2 miles)
· Terminal block power input for industrial application
· WDM technology
DESCRIPTION
The SDI series fiber video converter is an ideal and economical solution for broadcasting or surveillance applications. It receives one HD-SDI electrical input and perfectly converts electrical SDI signal to single mode optic SDI signal. It supports transmission images of SDTV (143-540Mbps), HDTV (1.485Gbps), and HDTV (3Gbps, 1080p60).
Both transmitter and receiver provide equalizing and reclocking at the input unit in order to reconstruct the signal for consistent quality. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, suitable for different working environments.
Opitcal:
| Wavelength | 1310nm&1470nm~1610nm |
| Output Power | -8~-3dBm / -3~+2dBm |
| Optic fiber | 50/125u multimode,62.5/125u multimode,9/125u single mode |
| Rx sensitivity | -18dBm |
| Optical connector | FC/ST/SC |
| Distance | 0~500M (MM) / 0~10KM (SM) |
Ethernet:
| Work mode | Full duplex/half duplex |
| Data Rate | 10/100Mbps(AUTO) |
| connection terminal | RJ45 |
Video:
| SDI Input | ||
| Signal Type SDI | SMPTE 424M, SMPTE 292M, SMPTE 259M | |
| Data Rates | 270Mbit/s - 1.48Gbit/s – 2.97Gbit/s | |
| Cable Equalization |
Automatic cable EQ (Belden 1694A cable) 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 2.97Gbit/s |
|
| Connector | BNC 75 Ohm | |
| General: | ||
| Input Power | 12V DC | |
| Power consumption (maximum) | <5W | |
| Operating temperature | 0°C to 55°C | |
| Storage temperature | -40°C to 85°C | |
| Operating humidity | 0 ~ 95% (non-condensing) | |
| Net Weight | 1.5KG per pair | |
| Dimension | 175mm×154mm×30mm | |
| Case material | Aluminum | |
