Product Details:
|
| Type: | Audio To Fiber | Warranty Time: | 1 Year |
|---|---|---|---|
| Network: | None | Application: | Broadcast /studio |
| Converter: | Fiber | ||
| Highlight: | Balance bidirectional audio over fiber,XLR bidirectional audio over fiber,XLR balanced audio over fiber |
||

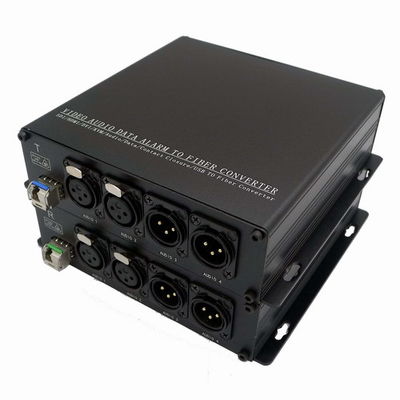

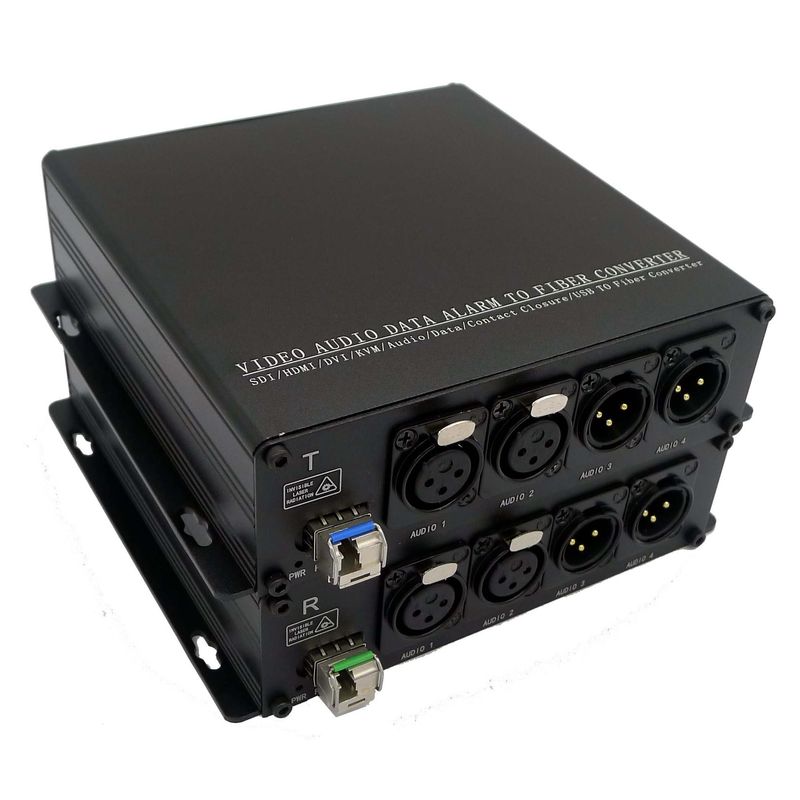

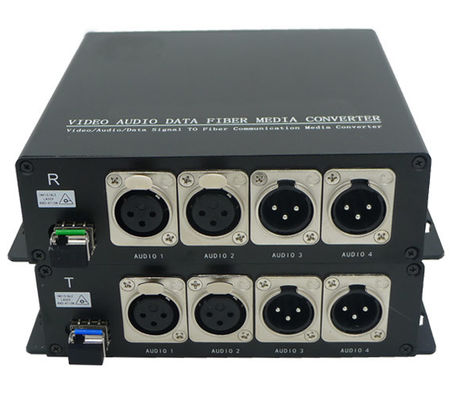

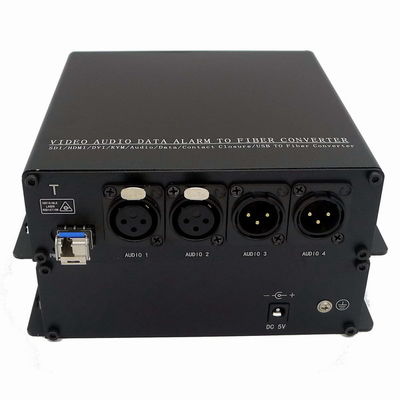

2 ch BIDI balanced audio over fiber series support 2 Channel BIDI 16-bit digitally encoded broadcast quality balanced audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.
Specifications
Opitcal:
|
Wavelength |
1310nm&1470nm~1610nm |
|
Output Power |
-10~ -5dBm / -5~0dBm |
|
Optic fiber |
50/125u multimode,62.5/125u multimode,9/125u single mode |
|
Rx sensitivity |
-25dBm |
|
Optical connector |
FC,ST,SC,LC (optional) |
|
Distance |
0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM) |
Balanced Audio
|

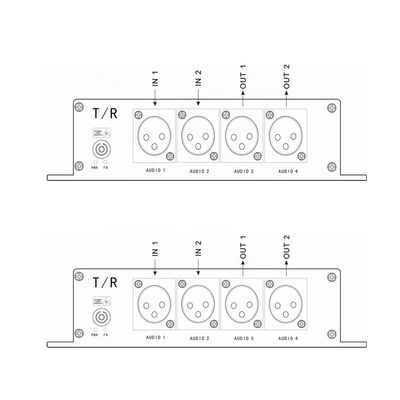

Number of Channels |
2 Input +2 Output |
|
Input Connector |
XLR(female) |
|
Output Connector |
XLR(male) |
|
Input / Output Impedance |
10K Ohm |
|
Input capacitance LINE inputs |
10 pF |
|
Max input/output voltage |
1.228Vp-p (+4dBu) |
|
Frequency Response |
20 Hz~24kHz @±3dB |
|
Sample Rates From |
48kHz |
|
SNR |
> 80dB |
Electrical & Mechanical
|
Input Power Requirements: |
DC 5V@2A |
|
Power Adapter: |
AC 90V~240V |
|
Power Consumption: |
< 5W |
|
Stand-Alone Dimensions: |
168mm × 154mm × 45mm |
|
Shipping Weight: |
(include Transmitter & Receiver ) 2.5kg |
Environmental
|
Operating Temperature: |
-20°C ~ +75°C |
|
Storage Temperature: |
-40°C ~ +85°C |
|
Relative Humidity: |
0% ~ 95% (non-condensing) |
|
MTBF: |
>100,000 hours |
