Product Details:
|
| Connector Type: | BNC | Video Type: | SDI |
|---|---|---|---|
| Optical Fiber Type: | Single Mode | Distance: | 10KM |
12G SDI to Fiber converter
The converter is designed for 12G SDI signal long-distance transmission up to 10KM.
The transmitter and receiver can be the same converter. what you need to do is adjust the switch. The converter can change from Transmitter to Receiver.
Support dual power supply can work with both DC5~12V power adapter or a 5V power bank connected with the type-C USB port. Easy to use.
Support a variety of video formats.
SD Video Format
525i59.94NTSC,625i50PAL
HD Video Format
720P50,720P59.94,720P60,1080P23.98,1080P24,1080P25,1080P29.97,1080P30,1080P50,1080P59.94,1080P60,1080PsF23.98,1080PsF24,1080PsF25,1080PsF29.97,1080PsF30,1080i50,1080i59.94,1080i60
2K and 4K Video Format
2K DCI 23.98P,2K DCI 24P,2K DCI 25P,2K DCI 23.98PsF,2K DCI 24PsF,2K DCI 25PsF,4K 23.98P,4K 24P,4K 25P,4K 29.97P,4K 30P,4K 50P,4K 59.94P,4K 60P,4K DCI 23.98P,4K DCI 24P,4K DCI 25P

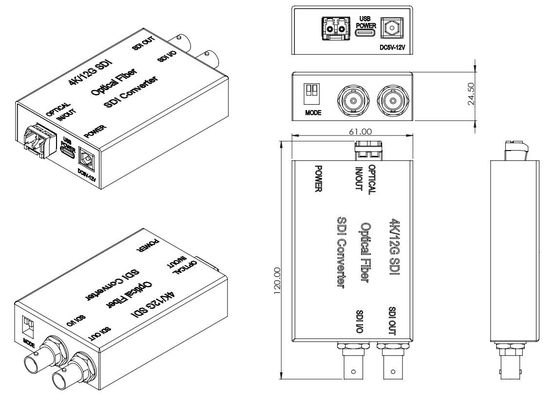

Small size:
