Hybrid Camera Cable power supply unit Hybrid Power Supply Unit

General Description:

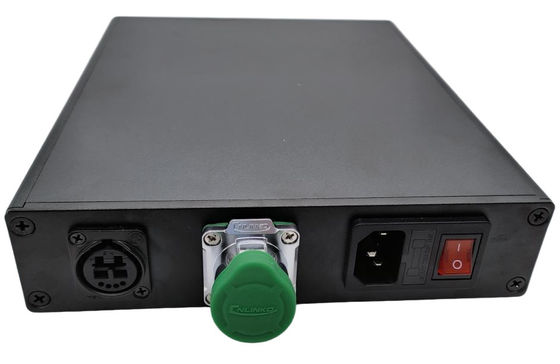

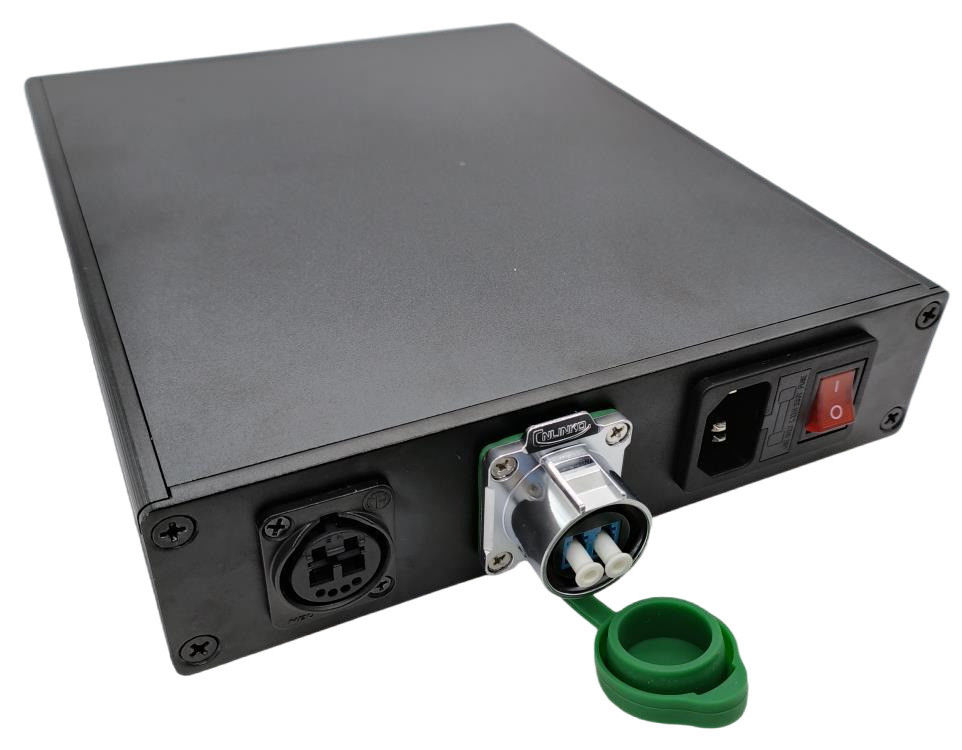

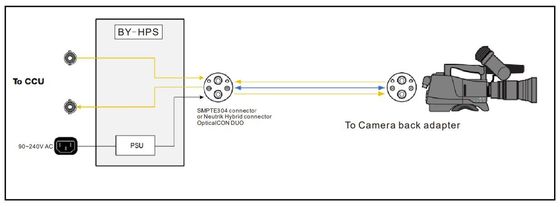

OP-HPS is designed for long-distance optical fiber systems with the power supply to Beyondopto camera back adapter and camera. OP-HPS power unit provides a hybrid cable connector (Neutrik OpticalCON DUO or SMPET304 hybrid connector), and an AC 90~240V in as a power supply for the power unit. The power unit working with the Beyondopto Camera back adapter will provide 76V DC power to the Camera adapter. The adapter will transfer DC76V to DC 15V for the camera power supply through an A-mount or V-mount plate. The hybrid connectors also transmit SDI signals and remote/Intercom and other signals over two single-mode Fibers. The power unit also provides two common optical connectors (ST, SC or LC connector or ODC, or another type of connector). These two optical connectors connect to the Beyondopto Camera fiber system base unit which can transmit SDI signal and intercom/tally and remote signals up to 10KM.

Product feature:

• Allows the use of conventional single-mode fiber cable
• Provide a power supply for the camera with a Hybrid optical cable
• Use common ST, SC, LC, and OpticalCON connectors for Fiber link
• Use OpticalCON DUO or SMPTE Hybrid connector for hybrid (Power supply and fiber) link
• Long-distance optical transmission range
• Lightweight and Easy to deploy

Specifications:

Electro and Optical:

Fiber Type: Single Mode

Compatible Camera back adapter: Beyondopto design.

Power supply for hybrid cable: DC 76V

Max power consumption: 180W

Mechanical /Environmental:

Size: 188mmX45mmX245.1mm

Weight:2.1KG

Temperature Range: -25° to 55°C

Humidity Range: 0 to 95% RH
