Product Details:
|
| Data Rate: | 4.25G | Distance: | 10KM |
|---|---|---|---|
| Package: | SFP Small Form Factor | Wavelength: | 1310nm |
| Highlight: | SFP LC DDM Transceiver,Pluggable SFP DDM,4.25G Data Rate LC DDM |
||

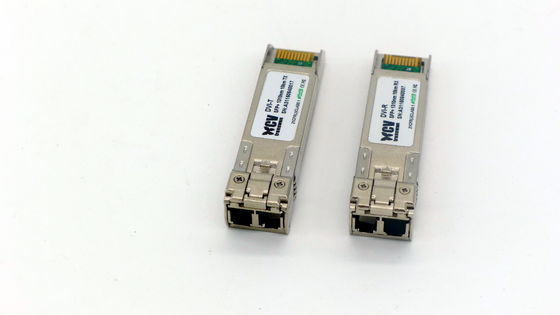

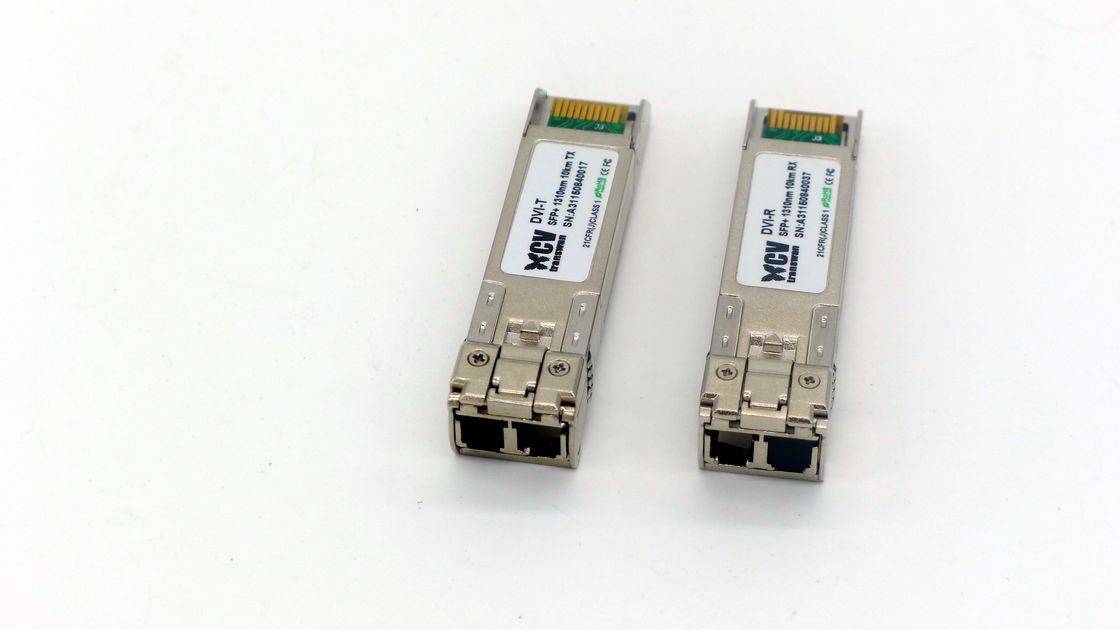

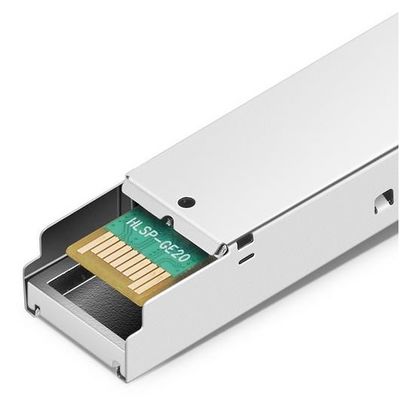

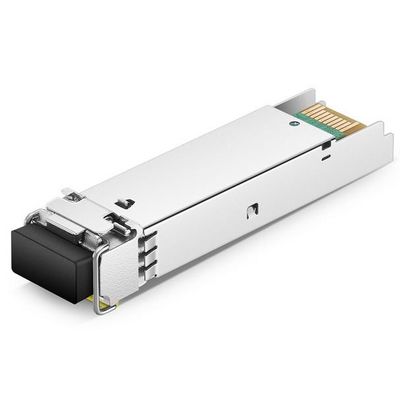

Pluggable SFP LC DDM Transceiver 1310nm 10KM Distance 4.25G Data Rate
4.25G SFP 1310nm 10KM SM LC DDM
SFP-4.25G-1310nm-10km-SM-LC-DDM Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA), The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the DFB laser and the PIN photo-detector. The module data link up to 10KM in 9/125um single mode fiber.
The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate the degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of the receiver or the link status with the partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.
Ordering information
| Product part Number |
Data Rate (Mbps) |
Media |
Wavelength (nm) |
Transmission Distance(km) |
Temperature Range (Tcase)(℃) | |
| SFP-4.25G-1310nm-10km-SM-LC-DDM | 4250 | Single mode fiber | 1310 | 10 | 0~70 | commercial |
| SFP-4.25G-1310nm-10km-SM-LC-DDM | 4250 | Single mode fiber | 1310 | 10 | -10~80 | extended |
| SFP-4.25G-1310nm-10km-SM-LC-DDM | 4250 | Single mode fiber | 1310 | 10 | -40~85 | industrial |
