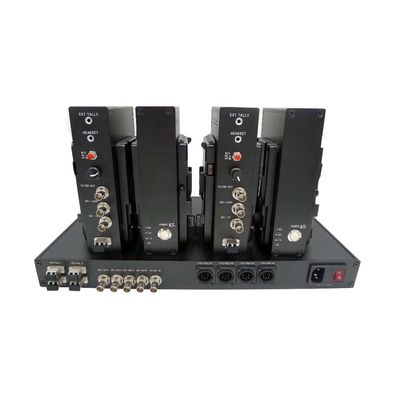

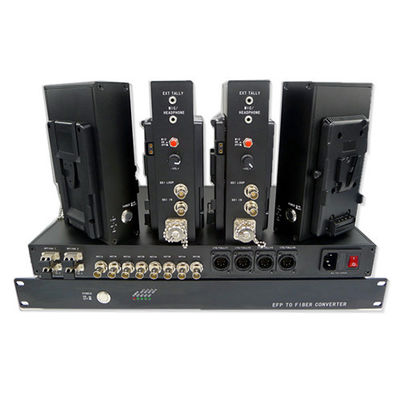

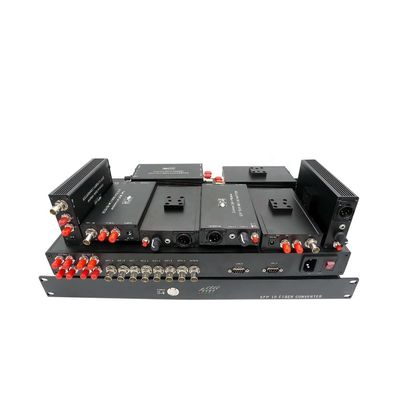

4Port Datavideo ITC-100 over fiber optic system applied in OBVAN,OB trucks,and SNG vehicles system
The SDI studio fiber system is specially designed for Datavideo ITC-100 Intercom over fiber to 10KM,which includes 4pcs of V type camera fiber adaptor and an Optic Base Station. The system transports 1port 3G/HD-SDI signal from the camera to the Base Station, 1x intercom, 1x tally. The system puts all of the basic signals needed for multi-camera 3G/HD-SDI production on dual LC fiber cable, insuring robust, trouble-free connectivity on any studio or remote production,which is usually used in OBVAN,OB trucks,and SNG vehicles system.

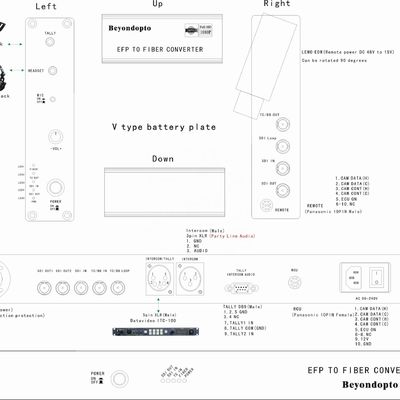

Functions Description:
Fiber Optic Converter ( Transmitter )
V-Lock on camera end
Fiber: by general dual LC fiber,
1x 3G/HD-SDI input ,1 SDI Output,
1x Intercom( Headset, Mic input, unbalanced line level audio output,5-Pin Female XLR)
1x Tally output(3.5mm)
Fiber Optic Converter ( Receiver )
1x 19" 1U rack mount on base end
Fiber: 4x dual single mode LC fiber cable
4x dual 3G/HD-SDI output
4x Intercom&4x Tally(support Datavideo ITC-100,DB9 connector)
Power supply:This product is the battery power supply, the camera fiber optic adapter (TX) hanging on the camcorder via the front A or V-shaped gusset plate , the back hanging battery while power supply to the camera and fiber optic adapter;
Features:Handle all Pathological patterns .Automatic cable equalization to ensure signal integrity .3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M.when over single mode fiber,it’s more than 10KM transmission distance up to a maximum 80KM .Mic inputs with mute and pre-amps .Tally LED+/- output .V-mount or A-mount battery plate selectable .Remote camera power supply, with insertion detection protection .Priority selection of hybrid cable power supply, with battery charge protection
Application:Television studio, mobile studio
EFP Electronic Field Production, major sporting events and large celebrations broadcast live
ENG camera (outdoor photo camcorders) upgraded to a EFP camera.
Specifications:General index
| Work Temp | -25°C to 55°C |
| Storage Temp | -40°C to 85°C |
| humidity | 0 ~ 95% (non-condensing) |
| Camera Optic Adaptor | |
| Input power | By Battery |
| Power consumption | <10W |
| Net weight | 1.5kg |
| Appearance size | 188mm*116mm*45mm (V-mount / A-mount) |
| Optic Base Station | |
| Input power | AC90~240V |
| Power consumption | <10W |
| Net weight | 4.5kg |
| Appearance size | 19” 1U standard rack mount |
Optical:
| Wavelength | 1310nm / 1550nm / CWDM |
| Output Power | -6~-1dBm |
| Rx sensitivity | <-18dBm |
| Transmission Distance | 10KM over single mode fiber |
| Optical connector | LC/ST/FC selectable |
SDI input/output:
| Signal format | SMPTE 424M, SMPTE 292M, SMPTE 259M |
| Data rate | 270Mbit/s - 1.48Gbit/s - 3Gbit/s |
| Cable Equalization |
Automatic cable EQ (Belden 1694A cable) 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s |
| SDI interface | BNC 75 Ohm |
Intercom:
| Camera Optic Adaptor | |
| Interface | 5pin XLR(Female) |
| Microphone | Mic inputs with mute and pre-amps |
| Headphone | with volume up or down |
Tally:
| Camera Optic Adaptor | |
| Interface | 3.5mm |
| Output | LED+/- |
| Optic Base Station | |
| Interface | DB9(Male) |
