3G Fiber Camera System With SD Forward And Return/ Data 422/485/Intercom/ Line Level Audio Over SMPTE Hybrid Fiber Cable

Fiber Optic Camera System with SD Forward & Return/ Data 422/485/Intercom/ Line level Audio over SMPTE Hybrid Fiber Cable

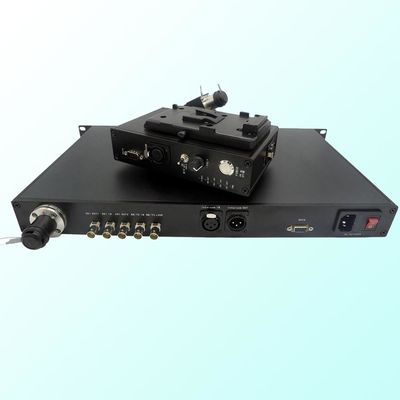

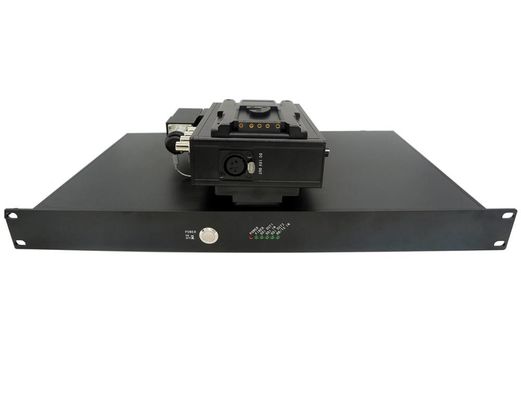

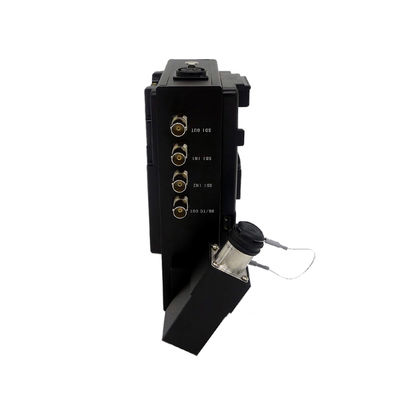

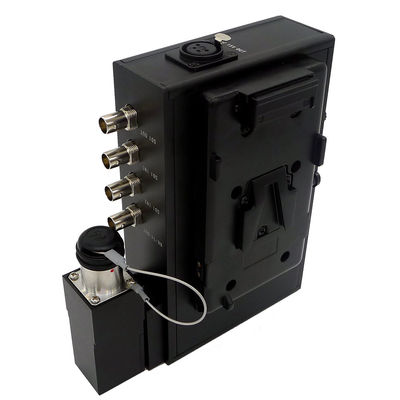

BY-EFP-602 Fiber Optical Camera System is a small form factor broadcast transmitter. It transmits video, audio, data and power over a single field SMPTE hybrid fiber cable.Long cable distances can be achieved due to highest quality power supplies implemented in base and camera unit.

BY-EFP-602 Fiber Optical Camera System is specially designed for highspeed camera systems outputting two 3G HD-SDI video signals, it performs excellent in all other professional broadcast applications. We offer customized solutions to transmit all required signals.

Features:
- All signal transmission including power over one single SMPTE hybrid fiber cable
- 15V DC power outlet at camera
- Long Distances
- Two 3G uncompressed HD-SDI signals from camera to base
- One 3G uncompressed HD-SDI signal (return signal)
- Two bi-directional data signal lines
- Two Audio Lines (line level)
- customized solutions with more or less signals on request

- Industry-standard connectors for all inputs and outputs;

- LED indicators;

Note:  1. add or remove some functions, please check the below Ordering Information

Parameters:

Distance: 10 Kilometers (SMF) or 300 Meters (MMF)
Fiber type: 62.5/125um MMF,50/125um MMF, 9/125μm SMF
Fiber Connector: SMPTE hybrid fiber Connector
SDI Connector: BNC
3G SDI Format:
1)All inputs and outputs are equalized and re-clocked
2)Pass all pathological patterns
3)SMPTE424M/292/259 and DVB-ASI compliance
4)Supports embedded audio and data signals
5)Support SD-SDI & HD-SDI & 3G-SDI, Support 270Mbps & 1.485Gbps & 2.97Gbps SDI Video

Dimension of Rx (CCU): 19" 1U rack mount (480 x 250 x 50 mm)
Gross.W: 10 Kg
Power Supply of Rx:  AC 85-260V/50Hz
Working Temperature: 0 ℃~+85 ℃ ;
Relative Humidity: 0 ~ 95%

Application:
Television studio, mobile studio
EFP Electronic Field Production, major sporting events and large celebrations broadcast live
ENG camera (outdoor photo camcorders) upgraded to a EFP camera.
OB Van

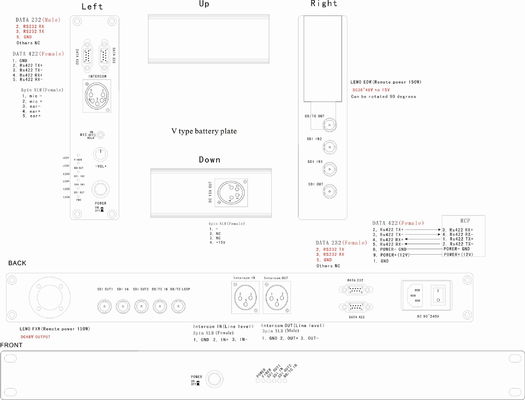

Panels and Interfaces:(please enlarge the same photo beside the headline)

Function Selections & Parameters:
