Ikegami OCP Broadcast Camera Fiber System 3G-SDI Reuten SDI video Tally Intercom Remote Genlock Use hybrid cable transmi

Large Image : Ikegami OCP Broadcast Camera Fiber System 3G-SDI Reuten SDI video Tally Intercom Remote Genlock Use hybrid cable transmi

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	BEYONDOPTO
Model Number:	BY-EFP-IK-03

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	Conact us
Packaging Details:	standard package
Delivery Time:	20working days
Payment Terms:	T/T
Supply Ability:	500 Pair/Pairs per Month

Contact Now

Ikegami OCP Broadcast Camera Fiber System 3G-SDI Reuten SDI video Tally Intercom Remote Genlock Use hybrid cable transmi

Description

Type:	Fiber Opitc Adapter	Port:	SHENZHEN

Products Description

EFP to Fiber for Ikegami OCP

Description

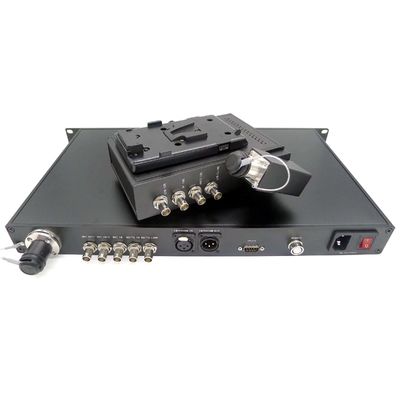

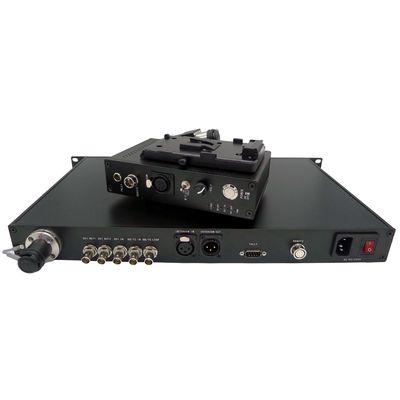

EFP to Fiber for Ikegami OCP includes a Camera Optic Adaptor and a Optic Base Station. The system transports 1 ch 3G/HD-SDI signal from the Ikegami camera to the Base Station, 1 ch Reverse 3G/HD-SDI, Genlock or TC/BB, Remote control(Connect Ikegami Operation Control Panel:OCP-100,/OCP200/OCP-300/OCP-399), intercom (Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected intercom main station), tally(One color or two colors can be selected), Remote camera power supply (15V DC up to 150 Watts). The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SM tactical or SMPTE hybrid cable, insuring robust, trouble-free connectivity on any studio or remote production.

Features

1 ch forward and 1 ch reverse SDI
Handle all Pathological patterns
Automatic cable equalization to ensure signal integrity
3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M
10+Km on single mode fiber transmission
Mic inputs with mute and pre-amps
Headphone with Intercom volume up or down
Remote control (Connect Ikegami OCP-100,/OCP200/OCP-300/OCP-3997)
Tally LED+/- output or dry Contact Closure optional
V-mount or A-mount battery plate optional, Upper battery plate can be changed to heat sink
Genlock or TC/BB are also available
Remote camera power supply (15V DC up to 150 Watts), with insertion detection protection

Specifications:

General index

Work Temp	-25°C to 55°C
Storage Temp	-40°C to 85°C
humidity	0 ~ 95% (non-condensing)
Camera Optic Adaptor
Input power	DC 11~19V
Power consumption	<12W
Net weight	1kg
Appearance size	188mm116mm45mm (without V-mount / A-mount)
Optic Base Station
Input power	AC90~240V
Power consumption	<12W
Net weight	3kg
Appearance size	19” 1U standard rack mount

Optical:

Wavelength	1310nm / 1550nm / CWDM
Output Power	-6~-1dBm
Rx sensitivity	<-18dBm
Transmission Distance	Remote power 150W,SMPTE hybrid cable 200+m
Optical connector	Lemo SMPTE 304 / Neutrik OpticalCON DUO hybrid connector Camera end can be rotated 90 degrees

SDI input/output:

Signal format	SMPTE 424M, SMPTE 292M, SMPTE 259M
Data rate	270Mbit/s - 1.48Gbit/s - 3Gbit/s
Cable Equalization	Automatic cable EQ (Belden 1694A cable) 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
SDI interface	BNC 75 Ohm

Genlock / TC / BB

Number of Channels	1
Input/output impedance	BNC 75Ω (unbalance)
Input/output voltage	1.0Vp-p
Differential Gain	< ±1.5%
Differential Phase	< ±1%
SNR	>60dB

Intercom:

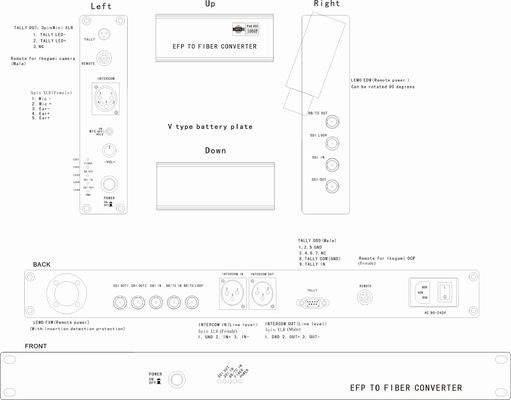

Camera Optic Adaptor
Interface	4pin XLR(Male) /5pin XLR(Female)/ 3.5mm headset jack
Microphone	Mic inputs with mute and pre-amps
Headphone	with volume up or down
Optic Base Station
Interface	3pin XLR Female/Male: Party line audio for Clearcom or RTS Intercom main station ,or Line level balanced audio input and output DB9(Male): Line level unbalanced audio input and output,

Tally:

Camera Optic Adaptor
Interface	4pin or 3pin mini XLR
Output	Dry Contact Closure or wet LED+/-
	On: short or LED on Off: open or LED off
Optic Base Station
Interface	DB9(Male)
Input	Dry Contact Closure or TTL
	On: short to GND or TTL low Off: open or TTL high

Remote:

Camera Optic Adaptor
Interface	Ikegami 8 pin connector
Data	Ikegami Remote Control data
Optic Base Station
Interface	Ikegami 8 pin connector
Data	Ikegami Remote Control data
