Product Details:
|
| Type: | EFP | Use: | Vedio Conference |
|---|---|---|---|
| Warranty: | 3 Years | No. Of Fiber: | 1. |
FEATURES
1ch RS232 data
DESCRIPTION

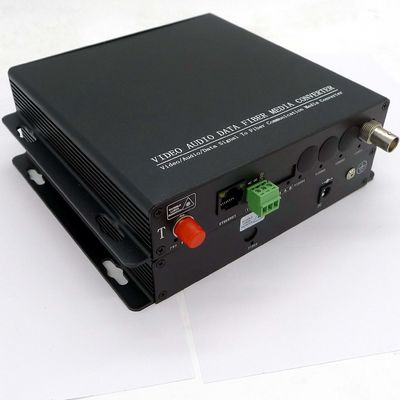

12G-SDI to fiber convertor is an ideal and economic solution for broadcasting or surveillance applications. It receives one 12G/6G/3G/HD/SD -SDI electrical input, perfectly converts electrical SDI signal to fiber optic SDI signal. It supports transmission of UHDTV/4K/8K/HDTV/SDTV SDI signal.
Both transmitter and receiver provide equalizing and integrated reclocker at input unit in order to re-construct the signal for consistent quality. Besides, with advanced fiber technology, the 12G-SDI to fiber can easily pass pathological pattern to prove its complete transmission.
|
Specifications:
|
SDI input/output |
||
|
Signal format |
SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI, |
|
|
Data rate |
270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s |
|
|
Cable Equalization |
Automatic cable EQ (Belden 1694A cable) 75 m at 11.88 Gbps (4Kp60 UHD) 120 m at 5.94 Gbps (UHD) 200 m at 2.97 Gbps (FHD) 280 m at 1.485 Gbps (HD) 600 m at 270 Mbps (SD)
|
|
|
SDI interface |
BNC 75 Ohm |
|
|
Fiber interface |
ST/FC/SC |
|
|
Number of transmitter channel |
1 |
|
|
Transmitter wavelength |
CWDM |
|
|
Transmitter output power |
-6~-1dBm(0±3dBm optional) |
|
|
Number of receiver output |
1 |
|
|
Receiver sensitivity |
-14.4dBm～-1dBm |
|
|
General index |
||
|
Input power |
DC 12V |
|
|
Power consumption |
<8W |
|
|
Work Temp |
-20°C to 70°C |
|
|
Storage Temp |
-40°C to 85°C |
|
|
humidity |
0 ~ 95% (non-condensing) |
|
|
Case material |
Aluminum |
|
|
Net Weight |
1.5KG per pair |
|
|
Dimension |
175mm×154mm×30mm |
|
RS232Data:
|
Data protocol |
RS232 |
|
Data rate |
0~200 Kbps |
|
Error rate |
< 10-9 |
|
Connector |
Standard terminal lead |
