Product Details:
|
| Type: | EFP | Use: | FTTX |
|---|---|---|---|
| Warranty: | 3 Years | Brand: | Beyondopto |
| No. Of Fiber: | 1. |
Application:
Television studio, mobile studio
EFP Electronic Field Production, major sporting events and large celebrations broadcast live
ENG camera (outdoor photo camcorders) upgraded to a EFP camera.
Specifications:
General index
| Work Temp | -25°C to 55°C |
| Storage Temp | -40°C to 85°C |
| humidity | 0 ~ 95% (non-condensing) |
| Camera Optic Adaptor | |
| Input power | By Lemo |
| Power consumption | <10W |
| Net weight | 1.5kg |
| Appearance size | 188mm*116mm*45mm (V-mount / A-mount) |
| Optic Base Station | |
| Input power | AC90~240V |
| Power consumption | <10W |
| Net weight | 4.5kg |
| Appearance size | 19” 1U standard rack mount |
Optical:
| Wavelength | 1310nm / 1550nm / CWDM |
| Output Power | -6~-1dBm |
| Rx sensitivity | <-18dBm |
| Transmission Distance | Opto-electronic hybrid cable 300+m |
| Optical connector | Lemo |
SDI input/output:
| Signal format | SMPTE 424M, SMPTE 292M, SMPTE 259M |
| Data rate | 270Mbit/s - 1.48Gbit/s - 3Gbit/s |
| Cable Equalization |
Automatic cable EQ (Belden 1694A cable) 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s |
| SDI interface | BNC 75 Ohm |
Intercom:
| Camera Optic Adaptor | |
| Interface | 5pin XLR(Female) |
| Microphone | Mic inputs with mute and pre-amps |
| Headphone | with volume up or down |
| PGM Audio | Balanced line level audio out with Volume up or down |
Tally:
| Camera Optic Adaptor | |
| Interface | 3pin mini XLR |
| Output | LED+/- |
| Optic Base Station | |
| Interface | DB25(Male) |
Remote:
| Camera Optic Adaptor | |
| Interface | RJ45 |
| Data | 10/100M ethernet |
| Optic Base Station | |
| Interface | RJ45 |
| Data | 10/100M ethernet |
Functions Description:

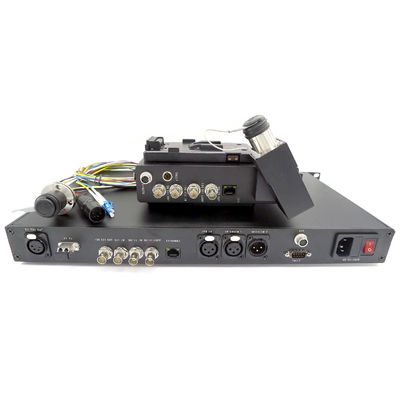

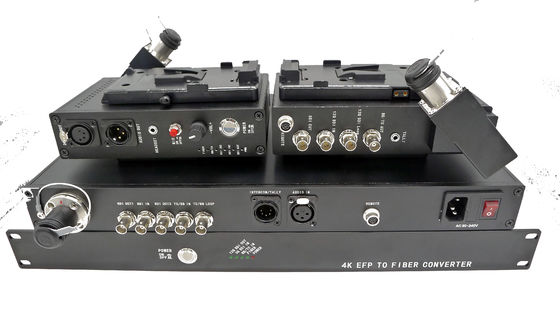

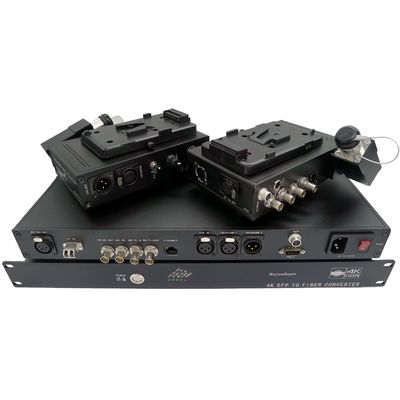

Fiber Optic Converter ( Transmitter )
A-Lock on camera end
Fiber: by Lemo hybrid cable powered from receiver side,
2x 3G/HD-SDI input ,1 SDI Output,
1x CVBS video output(Genlock),
1x Intercom( Headset, Mic input,nbalanced line level audio output,5-Pin Female XLR)
1x PGM Audio Output
1x Remote(10/100M Ethernet)
1x Tally output
1 x 4Pin XLR for 12V output
No power botton
Fiber Optic Converter ( Receiver )
1x 19" 1U rack mount on base end
Fiber: Lemo hybrid cable
3x 3G/HD-SDI output (twin SDI 1 OUT, Single SDI 2 OUT) and 1CH 3G/ HDSDI Input
1x CVBS video input(Genlock),1 Video Loop;
1x Bidi unbalanced line level audio ,1xPGM audio input(1xDB25Connector),
1x Remote (10/100M Ethernet)
1x Tally input

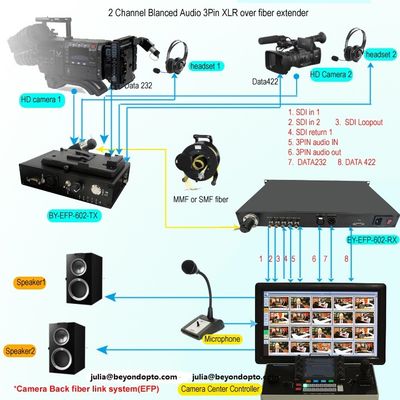

Panel diagram:
