Product Details:
|
| Type: | SDI | Use: | Remote Storage |
|---|---|---|---|
| Warranty: | 3 Years | No. Of Fiber: | 1. |
4K-SDI To Fiber Optic Converter is an ideal and economic solution for broadcasting or surveillance applications. It receives 4 3G/HD/SD-SDI electrical input, perfectly converts electrical SDI signal to single mode optic SDI signal. It supports transmission image of SDTV (143-540Mbps), HDTV (1.485Gbps) and HDTV (3Gbps, 1080p60).
Both transmitter and receiver provide equalizing and reclocking at input unit in order to re-construct the signal for consistent quality. Besides, with Transwan advanced fiber technology, VSDI can easily pass pathological pattern to prove its complete transmission.
Specifications:
|
SDI input/output |
||
|
Signal format |
SMPTE 424M, SMPTE 292M, SMPTE 259M |
|
|
Data rate |
270Mbit/s - 1.48Gbit/s - 3Gbit/s |
|
|
Cable Equalization |
Automatic cable EQ (Belden 1694A cable) 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s |
|
|
SDI interface |
BNC 75 Ohm |
|
|
Fiber interface |
ST/SC/FC |
|
|
Number of tranmitter channel |
4 |
|
|
Transmitter wavelength |
CWDM wavelength optional |
|
|
Transmitter output power |
-5~0dBm(0±3dBm optional) |
|
|
Number of receiver output |
4 |
|
|
Receiver sensitivity |
-18dBm~0 dBm |
|
|
General index |
||
|
Input power |
DC 12V |
|
|
Power consumption |
8W |
|
|
Work Temp |
-20°C to 55°C |
|
|
Storage Temp |
-40°C to 85°C |
|
|
humidity |
0 ~ 95% (non-condensing) |
|
|
Net weight |
2.5KG/pair |
|
|
Dimensions |
168mm×154mm×45mm |
|

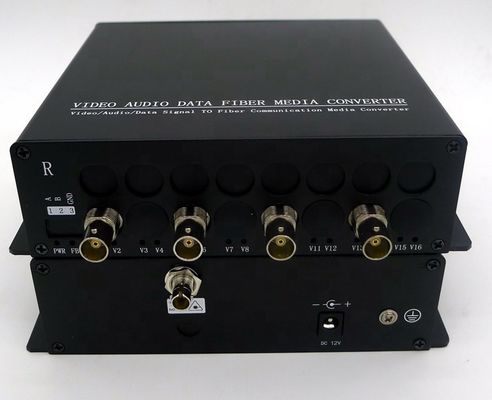

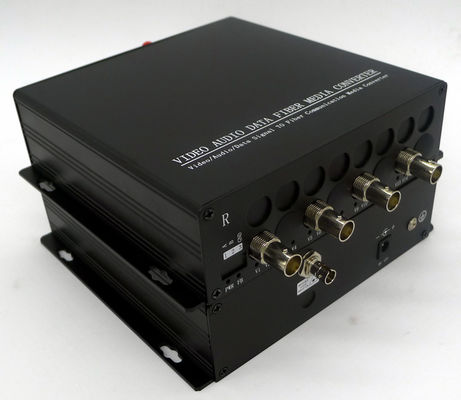

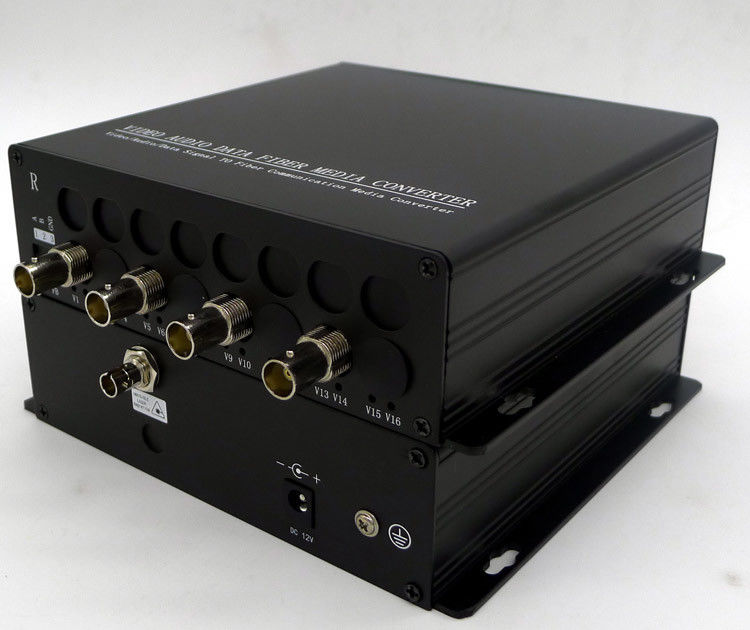

4K-SDI To Fiber Optic Panel And Connection Graphs
