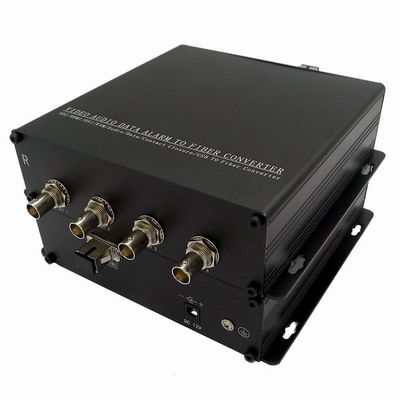

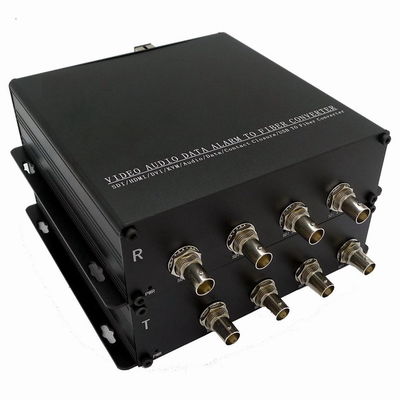

4ch SDI To Fiber Converter 3G/HD/SD-SDI SDTV HDTV EFP to fiber Extender

 4 Channel 3G/HD-SDI High density digital audio/video fiber transmission

* Handle all Pathological patterns

* SD, HD, 3G input auto indentification,support three datarate 270Mbit/s - 1.48Gbit/s - 3Gbit/s；support 1080P 3Gbps HD-SDI format

* Support SMPTE-424M 3Gbps HD-SDI,SMPTE-292M HD-SDI , SMPTE-259M SDI

* 10~60Km on single Mode Fiber transmission

* 1470~1610nm CWDM wavelengths optional.


Specifications:

SDI input/output
Signal format:SMPTE 424M, SMPTE 292M, SMPTE 259M

Data rate:270Mbit/s - 1.48Gbit/s - 3Gbit/s

Cable Equalization:Automatic cable EQ (Belden 1694A cable)
250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s

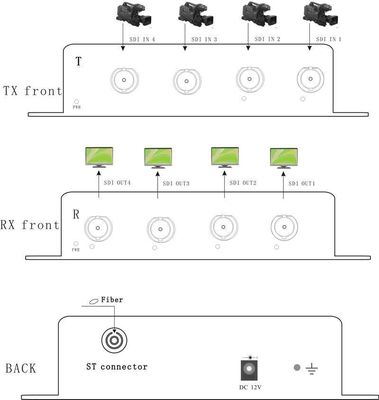

SDI interface:BNC 75 Ohm

Fiber interface:ST/SC/FC

Number of tranmitter channel:4

Transmitter wavelength:CWDM wavelength optional

Transmitter output power
-5~0dBm(0±3dBm optional)
Number of receiver output:4

Receiver sensitivity:-18dBm～0 dBm

General index
Input power:DC 12V

Power consumption:8W

Work Temp:-20°C to 55°C

Storage Temp:-40°C to 85°C

humidity:0 ~ 95% (non-condensing)

Net weight:2.5KG/pair

Dimensions
168mm×154mm×45mm
