Product Details:
|
| Application: | Broadcasting |
|---|
Features

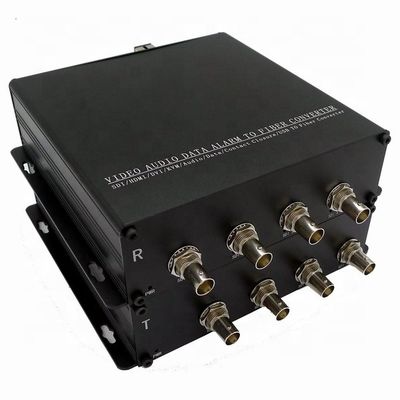

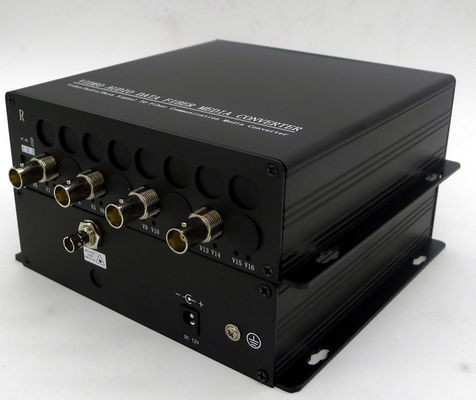

² 4 Channel HD-SDI High density digital audio/video fiber transmission
² Handle all Pathological patterns
² SD, HD, 3G input auto indentification,support three datarate 270Mbit/s - 1.48Gbit/s - 3Gbit/s;support 1080P 3Gbps HD-SDI format
² Support SMPTE-424M 3Gbps HD-SDI,SMPTE-292M HD-SDI ,SMPTE-259M SDI
² 10Km on single Mode Fiber transmission
² 1470~1610nm CWDM wavelengths optional.
Specifications:
|
SDI input/output |
||
|
Signal format |
SMPTE 424M, SMPTE 292M, SMPTE 259M |
|
|
Data rate |
270Mbit/s - 1.48Gbit/s - 3Gbit/s |
|
|
Cable Equalization |
Automatic cable EQ (Belden 1694A cable) 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s |
|
|
SDI interface |
BNC 75 Ohm |
|
|
Fiber interface |
SC/UPC |
|
|
Number of tranmitter channel |
4 |
|
|
Transmitter wavelength |
CWDM wavelength optional |
|
|
Transmitter output power |
-5~0dBm(0±3dBm optional) |
|
|
Number of receiver output |
4 |
|
|
Receiver sensitivity |
-18dBm~0 dBm |
|
|
General index |
||
|
Input power |
AC 100~240V |
|
|
Power consumption |
Transmitter: 12W Receiver: 12W |
|
|
Work Temp |
-20°C to 55°C |
|
|
Storage Temp |
-40°C to 85°C |
|
|
humidity |
0 ~ 95% (non-condensing) |
|
|
Net weight |
7000g /pair |
|
