Product Details:
|
| Highlight: | Broadcasting SDI To Fiber Converter,SDI Fiber Video Converter,Surveillance Applications Fiber To SDI Converter |
||
|---|---|---|---|

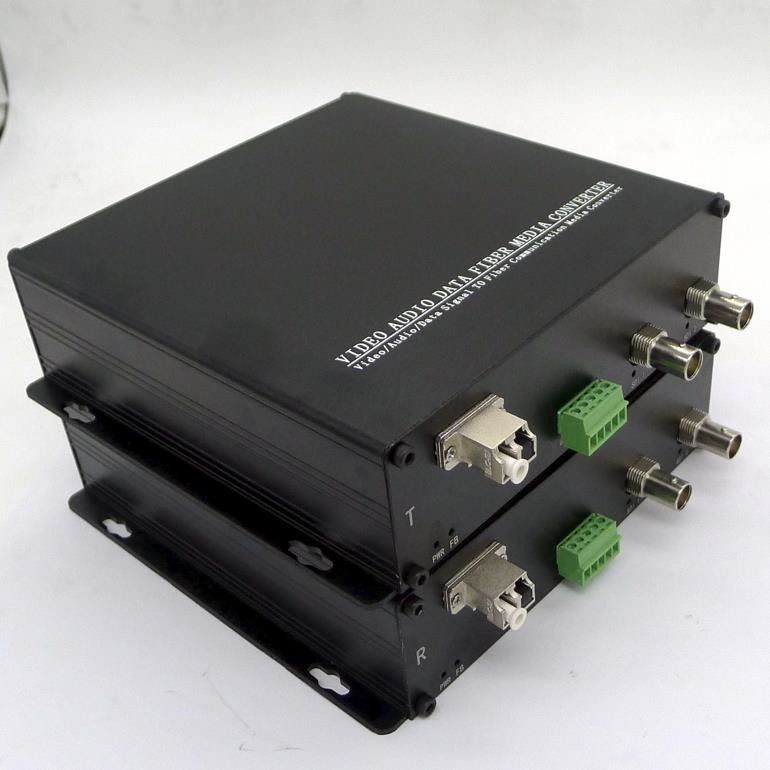

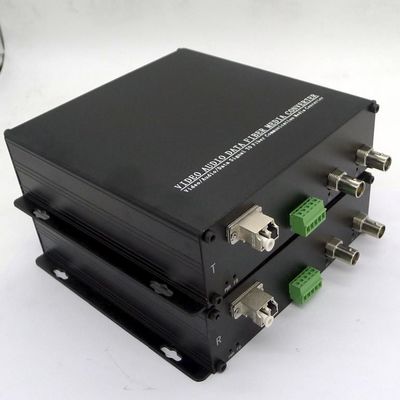

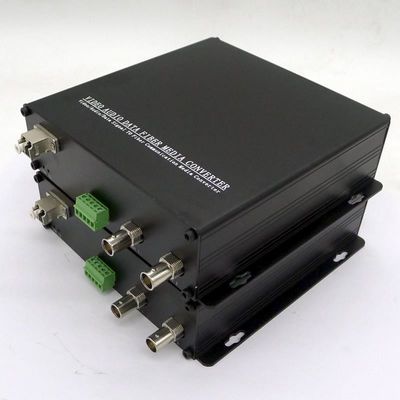

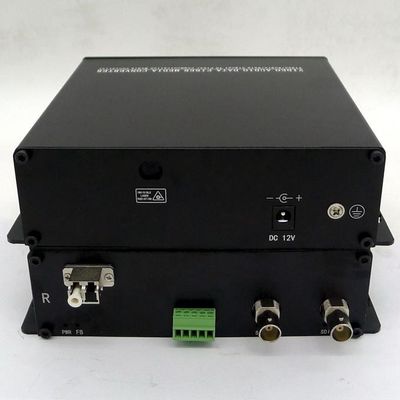

Broadcasting SDI To Fiber Converter For Surveillance Applications
SDI To Fiber Converter
The SDI series fiber video converter is an ideal and economic solution for broadcasting or surveillance applications. It receives one HD-SDI electrical input, perfectly converts electrical SDI signal to single mode optic SDI signal. It supports transmission image of SDTV (143-540Mbps), HDTV (1.485Gbps) and HDTV (3Gbps, 1080p60).
Both transmitter and receiver provide equalizing and reclocking at input unit in order to re-construct the signal for consistent quality. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment .
SPECIFICATION
Opitcal:
| Wavelength | 1310nm&1470nm~1610nm |
| Output Power | -8~-3dBm / -3~+2dBm |
| Optic fiber | 50/125u multimode,62.5/125u multimode,9/125u single mode |
| Rx sensitivity | -18dBm |
| Optical connector | FC/ST/SC |
| Distance | 0~500M (MM) / 0~10KM (SM) |
Video:
| SDI Input | ||
| Signal Type SDI | SMPTE 424M, SMPTE 292M, SMPTE 259M | |
| Data Rates | 270Mbit/s - 1.48Gbit/s – 2.97Gbit/s | |
| Cable Equalization |
Automatic cable EQ (Belden 1694A cable) 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 2.97Gbit/s |
|
| Connector | BNC 75 Ohm | |
| General: | ||
| Input Power | 12V DC | |
| Power consumption (maximum) | <5W | |
| Operating temperature | 0°C to 55°C | |
| Storage temperature | -40°C to 85°C | |
| Operating humidity | 0 ~ 95% (non-condensing) | |
| Net Weight | 1.5KG per pair | |
| Dimension | 175mm×154mm×30mm | |
| Case material | Aluminum | |
