Product Details:
|
| Highlight: | 10KM SFP DDM Transceiver,Optical Links SFP DDM,1310NM SFP Connector |
||
|---|---|---|---|

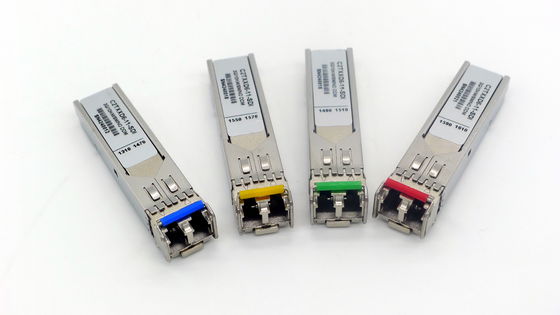

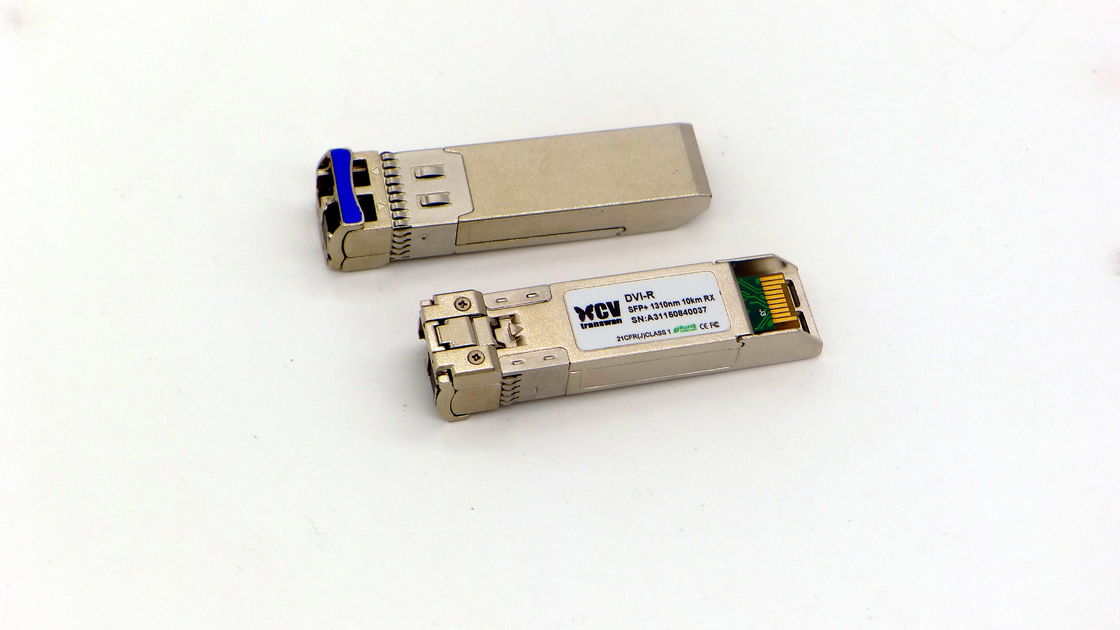

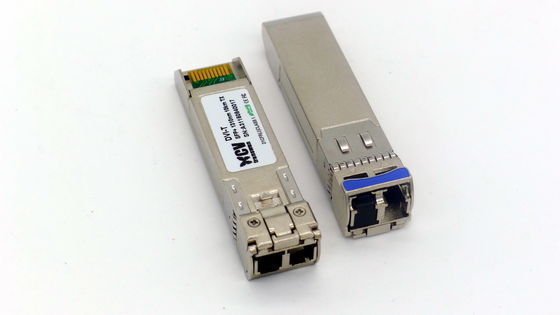

1000BASE-LX 1310NM 10KM SFP DDM Transceiver For Optical Links
1000BASE-LX SFP 1310NM 10KM DDM Transceiver
Application
Gigabit Ethernet Switches and Routers
Fiber Channel Switch Infrastructure
Ethernet/SDH/OTN Sonet
Other Optical Links
Features
• Operating Data Rate up to 1.25Gbps
• 10km with 9/125 μm SMF
• Single 3.3V Power Supply and TTL Logic Interface
• Hot-Pluggable SFP Footprint Duplex LC Connector Interface
• Class 1 FDA and IEC60825-1 Laser Safety Compliant
• Built-in digital diagnostic functions, including optical power monitoring
• Compliant with MSA SFP Specification
• Compliant with SFF-8472
Description:
The SFP Transceiver OP-1G-LX-31 series single-mode transceivers are small form factor pluggable modules for bi-directional serial optical data communications such as Gigabit Ethernet 1000BASE-LX and Fiber Channel 1x SM-LC-L FC-PI. It is with the SFP 20-pin connector to allow hot plug capability. This module is designed for single-mode fiber and operates at a nominal wavelength of 1310nm.
