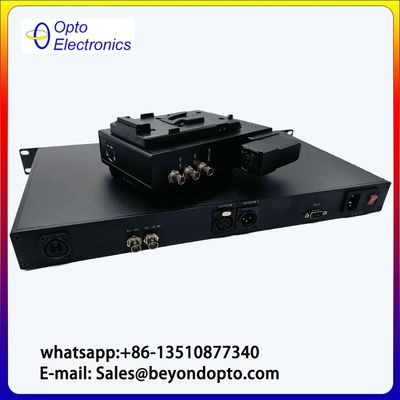

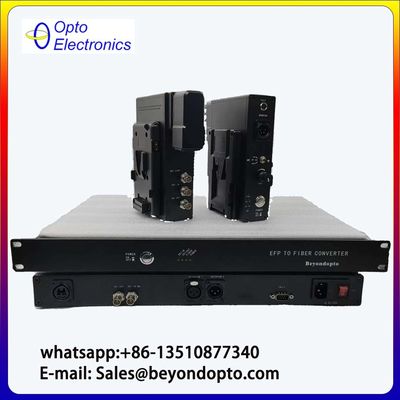

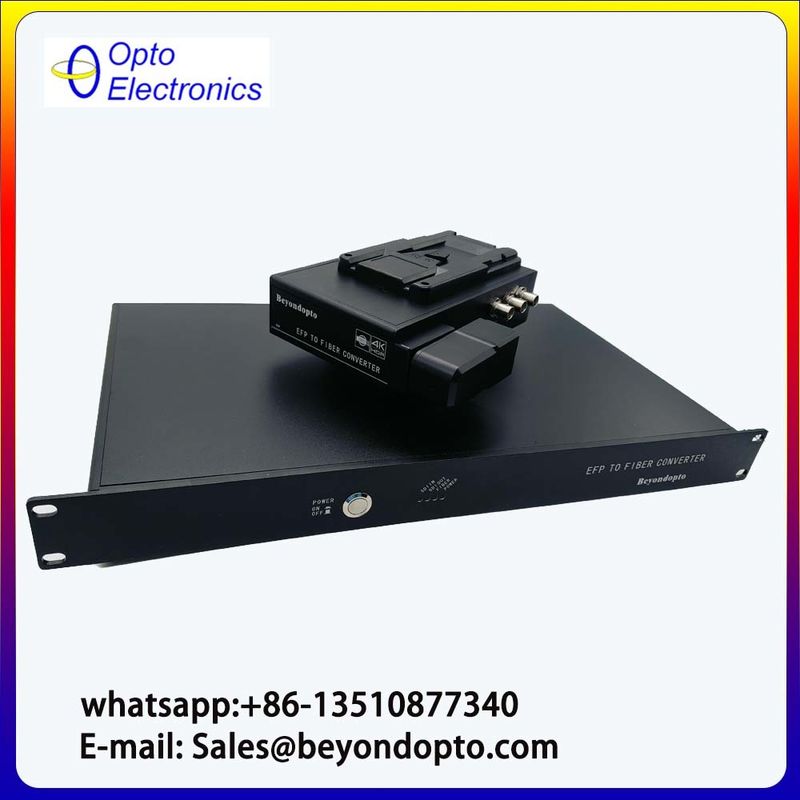

Camera Fiber Systen EFP to Fiber Converter with OpticalCon Connector

Camera Fiber System with OpticalCON connector for broadcast live shooting

1ch forward 12G SDI+1ch reverse 3G SDI to fiber broadcast live shooting includes a Camera Optic Adaptor and a Optic Base Station. The system transports 1ch 12G -SDI signal from the camera to the Base Station, 1ch reverse 3G/HD-SDI, tally(One color or two colors can be selected), Remote camera power supply (14.6V DC up to 100 Watts). The system puts all of the signals needed for multi-camera 12G -SDI production on a SMPTE hybrid cable with OpticalCON Duo connector, insuring robust, trouble-free connectivity on any studio or remote production.

Features
1. 1ch forward 4K/12G-SDI and 1ch reverse 3G/HD-SDI
2. Handle all Pathological patterns
3. Automatic cable equalization to ensure signal integrity
4. With integrated reclocker 270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s,Supports SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI,
5. Mic inputs with mute and pre-amps
6. Headphone with volume up or down
7. Remote control (Sony/ Panasonic/JVC/Ikegami/ Datavideo optional)
8. Tally LED+/- wet output or dry Contact Closure optional
9. V-mount or A-mount battery plate optional
10. Genlock or TC/BB is available
11. Reverse PGM/IFB audio optional
12. 10/100M Ethernet is optional
13. Remote camera power supply (14.6V DC up to 100 Watts), with insertion detection protection, Lemo SMPTE 304 or Neutrik OpticalCON DUO connector
14. SMPTE hybrid cable 200+m

Specifications:

Forward 4K/12G-SDI
Signal format SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI,
Data rate 270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s
Cable Equalization Automatic cable EQ (Belden 1694A cable)
75 m at 11.88 Gbps (4Kp60 UHD)
120 m at 5.94 Gbps (UHD)
200 m at 2.97 Gbps (FHD)
280 m at 1.485 Gbps (HD)
600 m at 270 Mbps (SD)
SDI interface BNC 75 Ohm
Reverse 3G/HD-SDI input/output:
Signal format SMPTE 424M, SMPTE 292M, SMPTE 259M
Data rate 270Mbit/s - 1.48Gbit/s - 3Gbit/s
Cable Equalization Automatic cable EQ (Belden 1694A cable)
250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
SDI interface BNC 75 Ohm
