Product Details:
|
| Audio In/out: | XLR | Fiber Type: | Singlemode/ Multi Mode Optional |
|---|---|---|---|
| Optical Interface: | ST,FC.SC.LC Optional | Distance: | 500meter To 20KM + |
| Highlight: | Balanced Audio To Fiber Converter,Bidirectional Audio To Fiber Converter,8ch audio fiber extender |
||
Overview
8 ch BIDI balance audio over fiber series support 8 Channel BIDI balance audio 16-bit digitally encoded broadcast quality balance audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.
Specifications
Opitcal:
| Wavelength | 1310nm&1470nm~1610nm |
| Output Power | -9~ -3dBm / -5~0dBm |
| Optic fiber | 50/125u multimode,62.5/125u multimode,9/125u single mode |
| Rx sensitivity | -25dBm |
| Optical connector | FC,ST,SC (optional) |
| Distance | 0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM) |
Balance Audio
| Number of Channels | 8 BIDI |
| Input Connector | XLR(female) |
| Output Connector | XLR(male) |
| Input Impedance | 10K Ohm |
| Output Impedance | 50 Ohm |
| Max input/output voltage | 1.288Vp-p |
| Frequency Response | 10 Hz～44.1kHz @±3dB |
| SNR | > 70dB |
Electrical & Mechanical
| Power Adapter: | AC 90V~240V |
| Power Consumption: | < 16W |
| Installation | 19’’ 1U rack-mount chassis |
| Shipping Weight: | (include Transmitter & Receiver ) 8kg |
Environmental
| Operating Temperature: | -20°C ~ +75°C |
| Storage Temperature: | -40°C ~ +85°C |
| Relative Humidity: | 0% ~ 95% (non-condensing) |
| MTBF: | >100,000 hours |

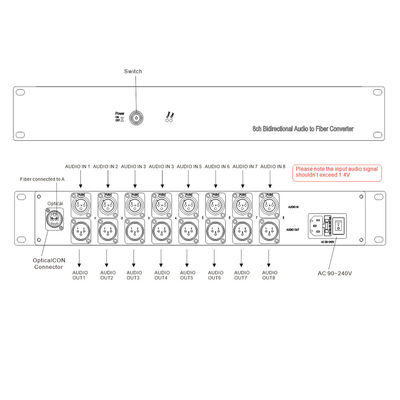

Connect diagram:
