Product Details:
|
| Type: | Audio To Fiber Converter | Use: | Video Conference |
|---|---|---|---|
| Warranty: | 3 Years | No. Of Fiber: | 1. |
| Highlight: | 1U Rack Audio To Fiber Converter,3 Pin Audio To Fiber Converter,XLR Audio To Fiber Media Converter |
||

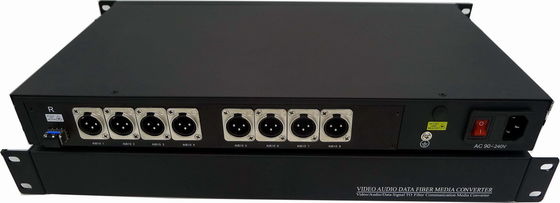

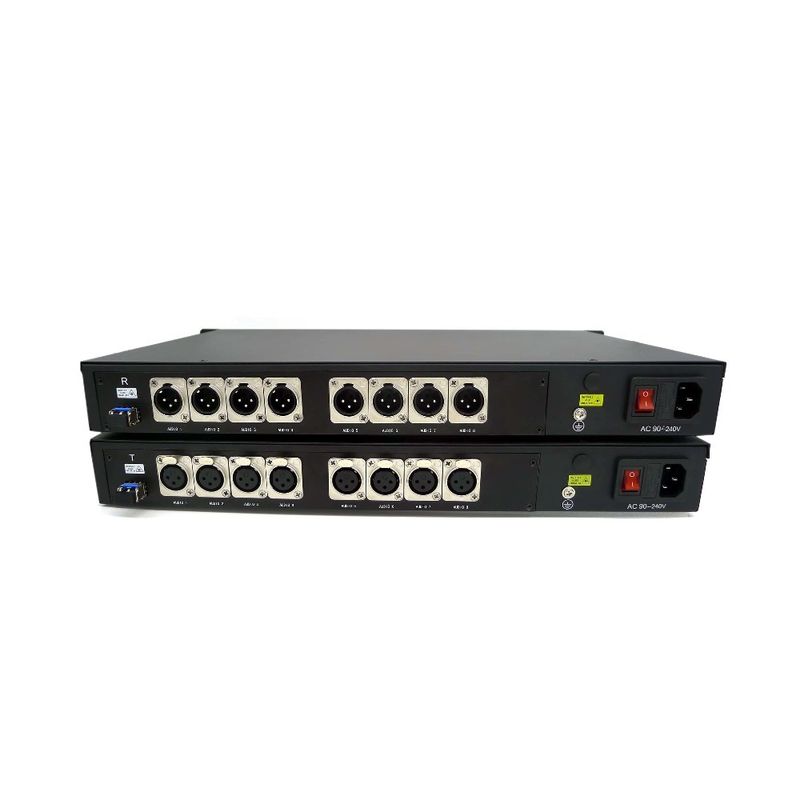

3 Pin XLR Banlanced Audio To Fiber Converter 1U Rack 8 Channels
8 channels 3-pin XLR banlanced audio to fiber converter,1U Rack 8-ch XLR audio to fiber media converter,banlanced audio
8 ch balanced audio over fiber series support 8 Channel balanced audio 16-bit digitally encoded broadcast quality balanced audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST, SC or LC optical connectors is optional.
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.
Specifications
Opitcal:
Wavelength | 1310nm&1470nm~1610nm |
Output Power | -9~ -3dBm / -5~0dBm |
Optic fiber | 50/125u multimode,62.5/125u multimode,9/125u single mode |
Rx sensitivity | -25dBm |
Optical connector | FC /ST /SC /LC (optional) |
Distance | 0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM) |
Balanced Audio
Number of Channels | 8 |
Input Connector | XLR(female) |
Output Connector | XLR(male) |
Input / Output Impedance | 10K Ohm |
Input capacitance LINE inputs | 10 pF |
Max input/output voltage | 1.0Vp-p |
Frequency Response | 20 Hz～24kHz @±3dB |
Sample Rates From | 48kHz |
SNR | > 80dB |
Electrical & Mechanical
Power Adapter: | AC 90V~240V |
Power Consumption: | < 8W |
Installation | 19’’ 1U rack-mount chassis |
Shipping Weight: | (include Transmitter & Receiver ) 7kg |
Environmental
Operating Temperature: | -20°C ~ +75°C |
Storage Temperature: | -40°C ~ +85°C |
Relative Humidity: | 0% ~ 95% (non-condensing) |
MTBF: | >100,000 hours |
Balanced Audio over Fiber connection diagram
