Product Details:
|
| Type: | Audio To Fiber Converter | Use: | Video Conference |
|---|---|---|---|
| Warranty: | 3 Years | No. Of Fiber: | 1. |
| Highlight: | 2 Way audio to fiber optic converter,4 Ch audio to fiber optic converter,Broadcasting fiber to audio converter |
||

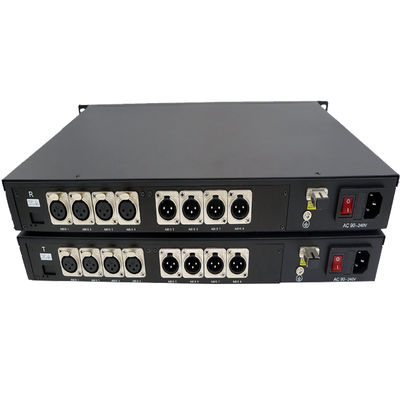

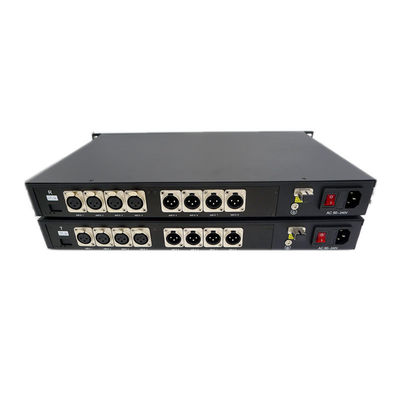

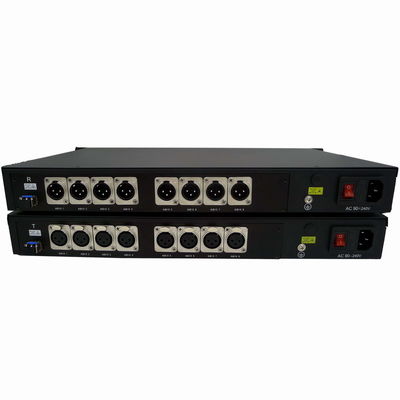

4 ch 2 way balanced audio to fiber Optic converter ,Radio and Broadcasting balanced audio over fiber to XLR audio fiber
Opitcal:
|
Wavelength |
1310nm&1470nm~1610nm |
|
Output Power |
-10~ -5dBm / -5~0dBm |
|
Optic fiber |
50/125u multimode,62.5/125u multimode,9/125u single mode |
|
Rx sensitivity |
-25dBm |
|
Optical connector |
FC,ST,SC ,LC(optional) |
|
Distance |
0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM) |
Balanced Audio
|
Number of Channels |
4 Input + 4 Output |
|
Input Connector |
XLR(female) |
|
Output Connector |
XLR(male) |
|
Input / Output Impedance |
10K Ohm |
|
Input capacitance LINE inputs |
10 pF |
|
Max input/output voltage |
3.0Vp-p |
|
Frequency Response |
10 Hz~24kHz @±3dB |
|
Sample Rates From |
48kHz |
|
SNR |
> 80dB |
Electrical & Mechanical
|
Power Adapter: |
AC 90V~240V |
|
Power Consumption: |
< 8W |
|
Installation |
19’’ 1U rack-mount chassis |
|
Shipping Weight: |
(include Transmitter & Receiver ) 7kg |
Environmental
|
Operating Temperature: |
-20°C ~ +75°C |
|
Storage Temperature: |
-40°C ~ +85°C |
|
Relative Humidity: |
0% ~ 95% (non-condensing) |
|
MTBF: |
>100,000 hours |
