2CH Unidirectional AES EBU Audio Over Fiber Extender For Broadcast System

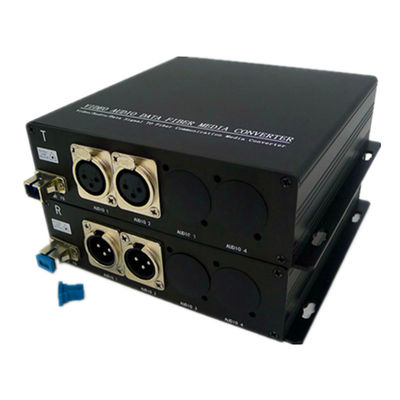

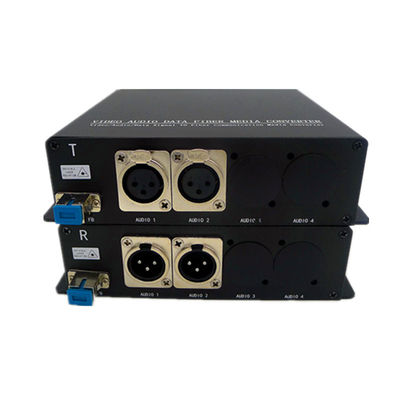

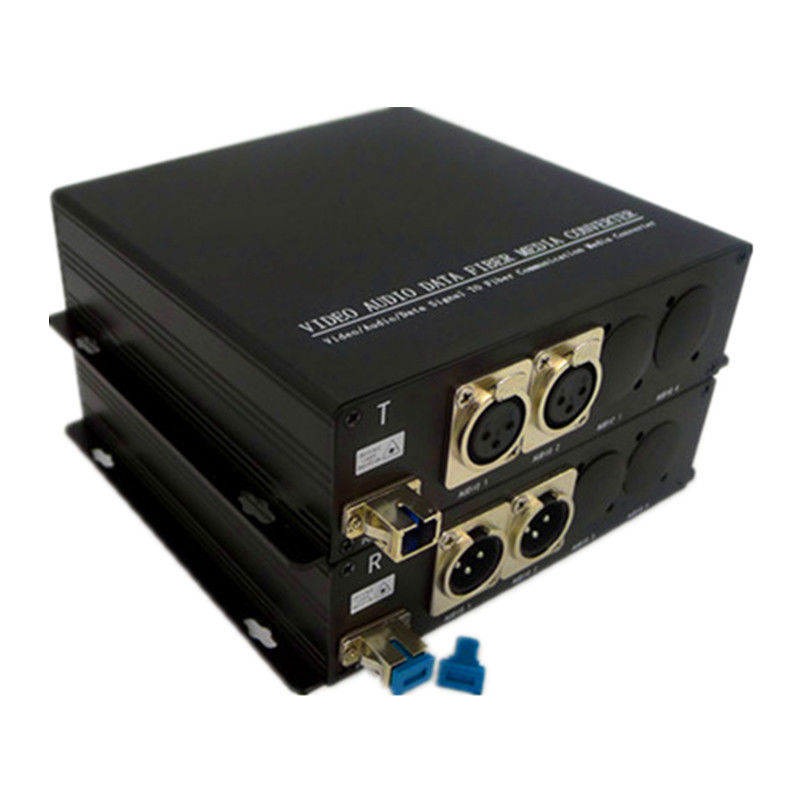

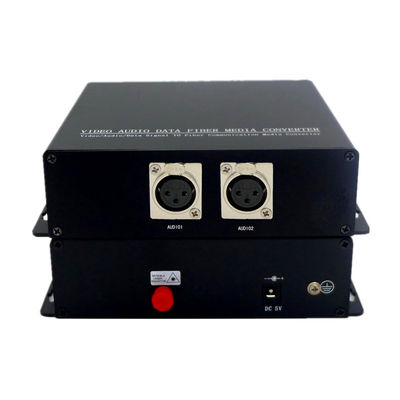

Large Image : 2CH Unidirectional AES EBU Audio Over Fiber Extender For Broadcast System

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	OptoElectronics
Model Number:	BY-2AE-XLR

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	$299.00 - $399.00/pairs
Packaging Details:	Carton
Delivery Time:	3~15working days
Payment Terms:	T/T
Supply Ability:	1000 Pair/Pairs per Month

Contact Now

2CH Unidirectional AES EBU Audio Over Fiber Extender For Broadcast System

Description

Type:

Audio To Fiber Converter

Use:

Theme Park CCTV Audio

Warranty:

3 Years

No. Of Fiber:

Highlight:

Unidirectional Audio Over Fiber Extender

AES EBU Audio Over Fiber Extender

Broadcast System Audio Fiber Extender

2CH Unidirectional AES EBU Audio Over Fiber Extender For Broadcast System

2CH Unidirectional Digital AES EBU Audio Over Fiber Extender For Broadcast System

2ch AES EBU audio to fiber converter also named as 2CH AES EBU audio fiber transmitters and receivers or 2ch AES EBU audio over
fiber extenders,which supports 2Ch digitally encoded AES EBU broadcast audio over one multi-mode or single-mode optical fiber.
These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums,
Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount
installations. FC, ST, SC or LC optical connectors is optional.
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED
indicators are provided to instantly monitor the system operating status.
Specifications
Opitcal:
Wavelength1310nm&1470nm~1610nmOutput Power-10~ -5dBm / -5~0dBmOptic fiber50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity-25dBmOptical connectorFC,ST,SC ,LC(optional)Distance0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM)
Balanced Audio
Number of Channels2Input ConnectorXLR(female)Output ConnectorXLR(male)Input / Output Impedance110 OhmMax input/output voltage0.2~5
Vp-pSampling Frequencyself-adaptionJitter<0.005UIp-p
Electrical & Mechanical
Power Adapter:DC5V2APower Consumption:< 5WStand-Alone Dimensions:168mm × 154mm × 45mmShipping Weight:(include Transmitter &
Receiver ) 2.5kgEnvironmental
Operating Temperature:-20°C ~ +75°CStorage Temperature:-40°C ~ +85°CRelative Humidity:0% ~ 95% (non-condensing)MTBF:>100,000 hours
Standalone Dimensions:

Connection diagram:2ch AES EBU audio to fiber converter also named as 2CH AES EBU audio fiber transmitters and receivers or 2ch AES EBU audio over
fiber extenders,which supports 2Ch digitally encoded AES EBU broadcast audio over one multi-mode or single-mode optical fiber.
These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums,
Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount
installations. FC, ST, SC or LC optical connectors is optional.
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED
indicators are provided to instantly monitor the system operating status.
Specifications
Opitcal:
Wavelength1310nm&1470nm~1610nmOutput Power-10~ -5dBm / -5~0dBmOptic fiber50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity-25dBmOptical connectorFC,ST,SC ,LC(optional)Distance0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM)
Balanced Audio
Number of Channels2Input ConnectorXLR(female)Output ConnectorXLR(male)Input / Output Impedance110 OhmMax input/output voltage0.2~5
Vp-pSampling Frequencyself-adaptionJitter<0.005UIp-p
Electrical & Mechanical
Power Adapter:DC5V2APower Consumption:< 5WStand-Alone Dimensions:168mm × 154mm × 45mmShipping Weight:(include Transmitter &
Receiver ) 2.5kgEnvironmental
Operating Temperature:-20°C ~ +75°CStorage Temperature:-40°C ~ +85°CRelative Humidity:0% ~ 95% (non-condensing)MTBF:>100,000 hours
Standalone Dimensions:

Connection diagram:
