Bi Directional Video Audio Data Fiber Media Converter 2 Ch To 20 Kilometers 1 SM Fiber Or 500 Meters 1mm Fiber

2 Ch Bi-directional (2 ways) Balanced Audio Fiber Extender to 20 Kilometers 1 SM Fiber or 500 Meters 1 MM Fiber

Description:

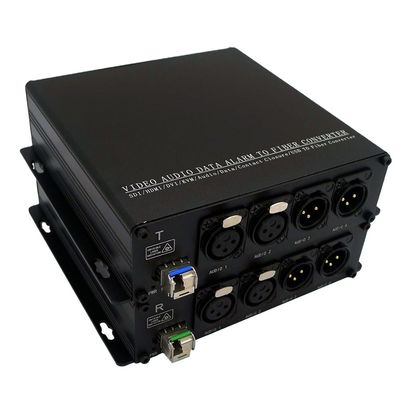

BY-XLR-352 includes optical transmitter and receiver, it enables 2 CH Bi-directional (2 ways) Balanced Audio over optical fiber for extreme long distance.

Features:

1). 2 Channels Bi-direcitonal (two way) balanced audio XLR female and male.   20Km over Singlemode Fiber or 500 meters on Multimode Fiber

2). Supports   16-bit digitally encoded broadcast quality balanced audio; with Bi-directional optical module.

3). Easy stand-alone or rack-mount installation.

4). Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required.

5). LED indicators are provided to instantly monitor the system operating status.

Specifications:

Balanced Audio:

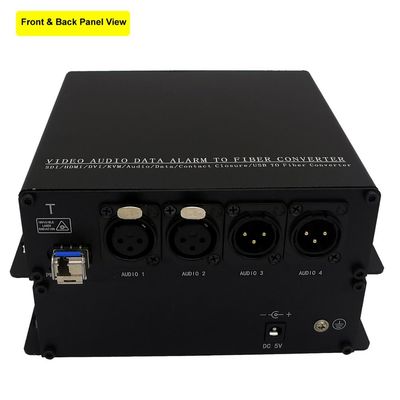

Number of Channels:2 Input +2 Output

Input Connector:XLR(female)

Output Connector:XLR(male)

Input / Output Impedance:10K Ohm

Input capacitance LINE inputs:10 pF

Max input/output voltage:3.0Vp-p

Frequency Response:10 Hz~24kHz @±3dB

Sample Rates From:48kHz

SNR:> 80dB

Optical:

Wavelength: 1310nm

Output Power: -14~ -8dBm

Supported Optic fiber: 50/125u multimode,62.5/125u multimode,9/125u single mode

Rx sensitivity:-30dBm

Optical connector: 1 x ST(default),   FC/SC/LC (optional)

Distance: 0~500 Meters (MMF) /   0~20 Kilometers (SMF)

Electrical & Mechanical:

Input Power Requirements:DC 5V@2A

Power Adapter:AC 90V~240V

Power Consumption:< 5W

Stand-Alone Dimensions:168mm × 154mm × 45mm

Shipping Weight:(include Transmitter & Receiver ) 2.5kg

Environmental:

Operating Temperature:-20°C ~ +75°C

Storage Temperature:-40°C ~ +85°C

Relative Humidity:0% ~ 95% (non-condensing)

MTBF:>100,000 hours

Application:

Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications etc

Package:

1. 1 x transmitter with optical module.

2. 1 x receiver with optical module.

3. 2 x Power Adapters.

4. 1 x Manual

About shipment:

Once order confirmed,   we will dispatch the goods within 1~2 days by DHL for one week arrival.
