Two Way XLR Audio To Fiber Converter Broadcasting BIDI Balanced Audio

Large Image : Two Way XLR Audio To Fiber Converter Broadcasting BIDI Balanced Audio

Product Details:

Place of Origin:	GUA
Brand Name:	OptoElectronics
Model Number:	OP-XLR-2AA-SM001

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	Conact us
Packaging Details:	carton box
Delivery Time:	3~15working days
Payment Terms:	T/T
Supply Ability:	100 Pair/Pairs per Month

Contact Now

Two Way XLR Audio To Fiber Converter Broadcasting BIDI Balanced Audio

Description

Type:	Optical Transmission Product	Use:	Boardcast
Warranty Time:	1year	Network:	None
Audio:	Audio To Fiber	Optical Fiber:	Long Distance Low Noise
Highlight:	XLR Audio To Fiber Converter , Two Way Audio To Fiber Converter , BIDI Balanced Audio XLR Over Fiber

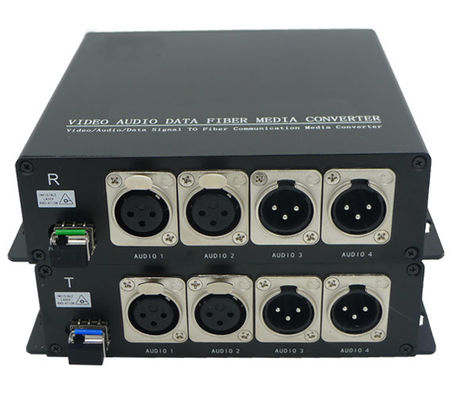

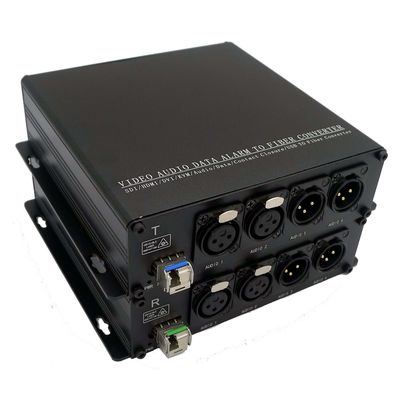

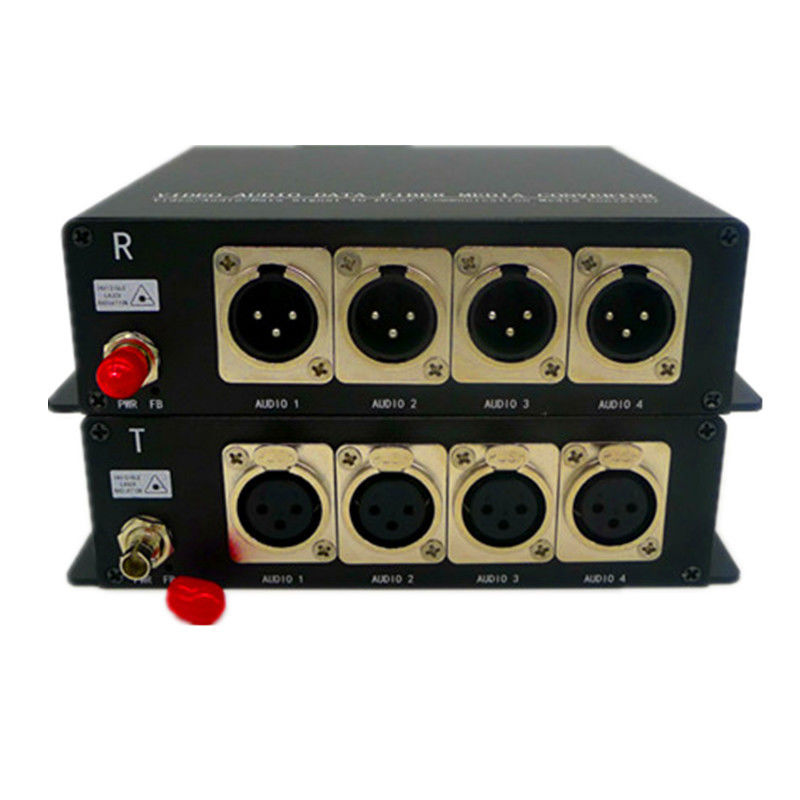

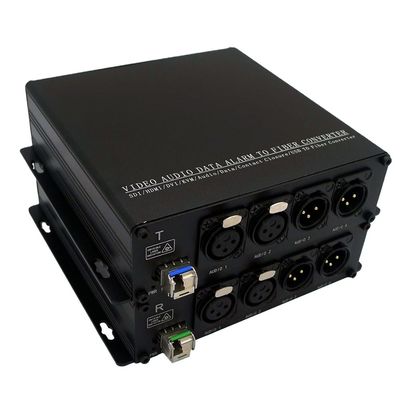

Two Way XLR Audio To Fiber Converter Broadcasting BIDI Balanced Audio

2-ch Two-way XLR audio to fiber converter,broadcasting voice audio over a single SC/ST/FC/LC fiber

Product Despription

2 CH BIDI Balanced Audio (XLR)To Fiber Optic support 2 Channel BIDI balanced audio 16-bit digitally encoded broadcast quality
balanced audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are
typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional
AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED
indicators are provided to instantly monitor the system operating status.

Specifications

Opitcal:

Wavelength
1310nm&1470nm~1610nm
Output Power
-14~ -8dBm / -5~0dBm
Optic fiber
50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity
-30dBm
Optical connector
FC,ST,SC (optional)
Distance
0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM)

Balanced Audio

Number of Channels
2 Input +2 Output
Input Connector
XLR(female)
Output Connector
XLR(male)
Input / Output Impedance
10K Ohm
Input capacitance LINE inputs
10 pF
Max input/output voltage
1.0Vp-p
Frequency Response
20 Hz～24kHz @±3dB
Sample Rates From
48kHz
SNR
> 80dB

Electrical & Mechanical

Input Power Requirements:
DC 5V@2A
Power Adapter:
AC 90V~240V
Power Consumption:
< 5W
Stand-Alone Dimensions:
168mm × 154mm × 45mm
Shipping Weight:
(include Transmitter & Receiver ) 2.5kg

Environmental

Operating Temperature:
-20°C ~ +75°C
Storage Temperature:
-40°C ~ +85°C
Relative Humidity:
0% ~ 95% (non-condensing)
MTBF:
>100,000 hours

Specification

item	value
Model Number	OP-XLR-2AA-SM001
Type	optical transmission product
Place of Origin	GUA
Brand Name	Opto-Electronics
Use	Boardcast
Warranty Time

Packing & Delivery

carton box
