Product Details:
|
| Highlight: | Analog XLR Audio Over Fiber,4CH XLR Audio Over Fiber,XLR Analog Audio Over Fiber |
||
|---|---|---|---|

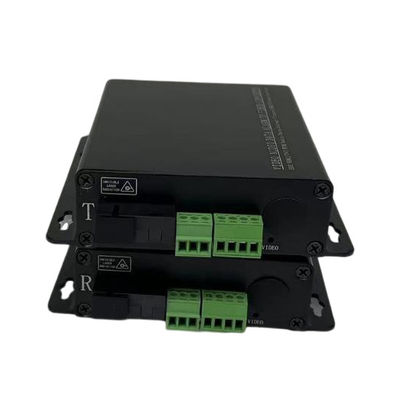

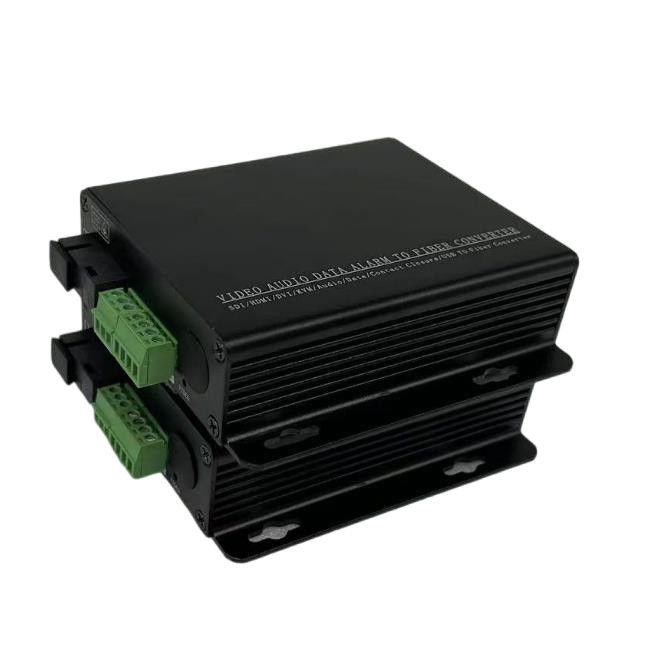

4CH Analog XLR Audio Over Fiber With Green Standard Terminals
4CH Audio over fiber with Green standard Terminals
Audio over Fiber series support 1~32 Channel simplex or 16 channel duplex 24-bit digitally encoded broadcast quality audio over one multi-mode or single-mode optical fiber. These fiber optic transmitters and fiber optic receivers are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST, or SC optical connectors is optional.
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to monitor the system operating status instantly.
Specifications
Opitcal:
| Wavelength | 1310nm&1470nm~1610nm |
| Output Power | -14~ -8dBm / -5~0dBm |
| Optic fiber | 50/125u multimode,62.5/125u multimode,9/125u single mode |
| Rx sensitivity | -30dBm |
| Optical connector | FC,ST,SC (optional) |
| Distance | 0~2KM (MM) / 0~20KM (SM) |
Audio
| Input/output Impedance | 600ohm(unbalance) |
| Max input/output voltage | 3.0Vp-p |
| Frequency Response | 10 Hz～29kHz @±3dB |
| SNR | > 70dB |
| Connector | Standard terminal lead |
| Number of Channels | 1 BIDI |
Electrical & Mechanical
| Input Power Requirements: | DC 5V@2A |
| Power Adapter: | AC 90V~240V |
| Power Consumption: | < 3W |
| Stand-Alone Dimensions: | 104mm × 104mm × 28mm |
| Shipping Weight: | (include Transmitter & Receiver ) 0.8kg |
Environmental
| Operating Temperature: | -20°C ~ +75°C |
| Storage Temperature: | -40°C ~ +85°C |
| Relative Humidity: | 0% ~ 95% (non-condensing) |
| MTBF: | >100,000 hours |
