Product Details:
|
| USB Version: | USB2.0/1.1 | Power Supply: | DC 5V~12V |
|---|---|---|---|
| Port: | 4Port | Fiber Type: | Single Or Multi Mode |
| Distance: | 500meter To 20KM + | Optical Interface: | ST,FC.SC.LC Optional |
| Tx USB Interface: | Type A X 4 | Rx USB Interface: | Type A |
| Highlight: | ST Interface USB Over Fiber Extenders,4 Port USB Over Fiber Extenders,SC Interface USB To Fiber Optic Extender |
||
Plug And Play USB Over Fiber Extenders ST FC SC LC Optional Interface
USB2.0 over Fiber hub 4port USB2.0 Fiber Extender

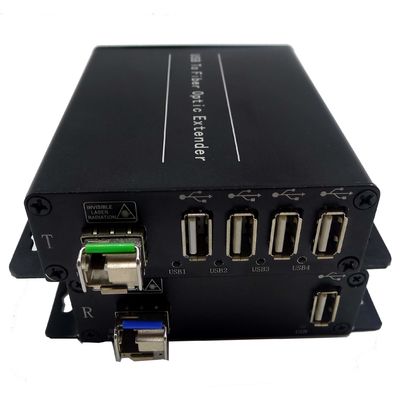

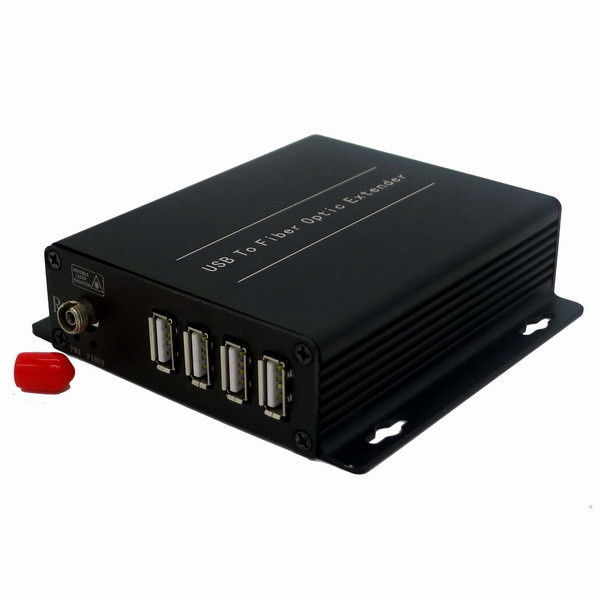

4 Port USB 2.0 Fiber Optic Extender, Also called 4 Port USB2.0 To Fiber Converter. The device includes a transmitter and a receiver, which can extend USB 2.0 device to a remote location over 1 fiber cable, max distance 2Km (SM fiber cable). An integrated four-port hub allows for the extension of up to four USB devices without the need for an additional hub.
The device can be widely used in military command and control systems, police command and control systems, traffic management systems, energy and electricity supply industries, government offices, medical systems, commercial presentations, multimedia, public utilities, etc.
Product feature:
1, Max extension distance 250m (SM or MM fiber cable).
2, Single/Duplex fiber transmission, pure hardware design, no driver needed, compatible with all operation systems, support plug and play
3, Auto recognition of High-speed(25Mbps～480Mbps),Full-speed(500Kbps～12Mbps),Low-speed(10Kbps～1.5Mbps)USB device.
4, Support USB1.1 and USB 2.0 devices, cameras, printers, U disk, scanners, audio devices, touch screens, game controllers, mouse, and keyboard, etc.
Product specification:
| Optical | Connector | SM/MM SC/FC/ST/LC |
| Wave length | 1310nm/1550nm | |
| Physical | Size (L× W ×H) | 104mm x104mm x28mm |
| Case | Aluminum | |
| Color | Black | |
| N.W. | 0.75Kg | |
| Power | Voltage | 5~12V DC |
| sender power consumption | <20W | |
| receiver power consumption | <5W , Powered by USB cable, no external power adapter required | |
| Environment | Working temperature | -20℃-70℃ |
| Storage temperature | -40-85℃ | |
| Humidity | 0-95% (non-condensing) |
USB interface(Type A)
| RX | 1, connect to PC |
| TX | 4 , connect to USB devices, max 500mA |
Connection diagram:
