Product Details:
|
| USB Version: | USB2.0 | Optical Interface: | ST,FC,SC,LC , SFP Module Optional |
|---|---|---|---|
| Extend Distance: | 500M For Multi-mode Fiber Or 20KM For Single Mode Fiber | Power Supply: | 5V 2A |
| USB Port Quantity: | 4 Port | OEM: | Support |
| Highlight: | 4 Port Fiber Optic USB Extender,Camera Printer Fiber Optic USB Extender,Hub USB 2.0 Fiber Extender |
||

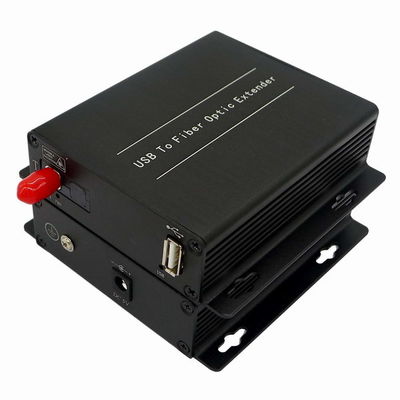

Long Distance Transmit 4 Port Fiber Optic USB Extender For Camera Printer
USB2.0 to Fiber Extender Hub USB Long distance transmit 4port USB to optical Fiber for USB camera and USB printer
USB 2.0 extender or optical fiber USB2.0 extender, can extend USB2.0 signal to 20km through single-mode optical fiber or 500 meters through the multi-mode optical fiber.
USB 2.0 extender can work with USB 2.0 camera, USB printer, USB Memory stick, USB 2.0 video capture device, or some oscilloscopes and other test equipment devices.
When your USB device is several hundred meters away from you, and the USB cable can't do the transmission work. you will need our USB to Fiber Extender.
Product feature:
1, Max extension distance 500m (MM fiber cable) or 20 km over single-mode fiber. Longer extension distance available.
2, Single/Duplex fiber transmission,
3, Pure hardware design, no driver needed,
4, Compatible with all operating systems,
5, Support plug and play
6, Auto recognition of High-speed(25Mbps～480Mbps),Full-speed(500Kbps～12Mbps),Low-speed(10Kbps～1.5Mbps)USB device.
7, Support USB1.1 and USB 2.0 devices, cameras, printers, U disk, scanners, audio devices, touch screens, game controllers, mouse, and keyboard, etc.
Product specification:
| Optical | Connector | SM/MM SC/FC/ST |
| Wave length | 1310nm/1550nm | |
| Physical | Size (L× W ×H) | 104mm x104mm x28mm |
| Case | Aluminum | |
| Color | Black | |
| N.W. | 0.75Kg | |
| Power | Voltage | 5V DC |
| sender power consumption | <5W | |
| receiver power consumption | <5W , Powered by USB cable, no external power adapter required | |
| Environment | Working temperature | -20℃-70℃ |
| Storage temperature | -40-85℃ | |
| Humidity | 0-95% (non-condensing) |

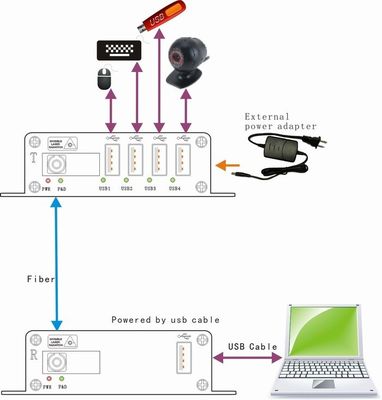

USB interface(Type A):
| RX | 1, connect to PC |
| TX | 4, connect to USB devices, max 500mA |
