USB2.0 to Fiber Extender Hub version 4port USB to Fiber Extender

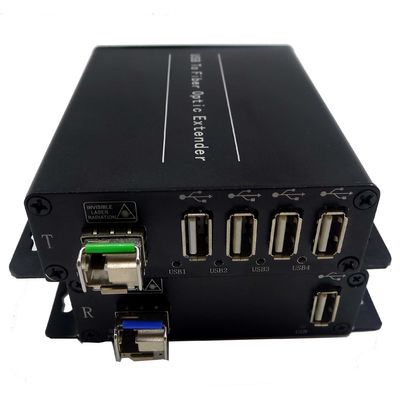

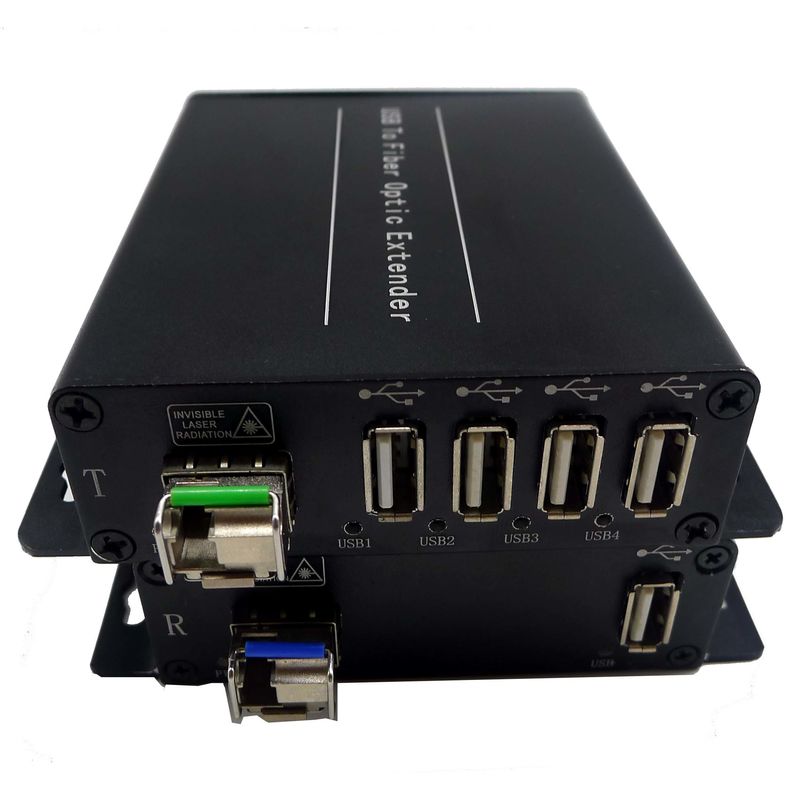

4 Port USB 2.0 Fiber Optic Extender, Also called 4 Port USB2.0 To Fiber Converter. The device includes a transmitter and a receiver, which can extend the USB 2.0 device to a remote location over 1 fiber cable, max distance of 20km (SM fiber). An integrated four-port hub allows for the extension of up to four USB devices without the need for an additional hub.
The device can be widely used in military command and control systems, police command and control systems, traffic management systems, energy and electricity supply industries, government offices, medical systems, commercial presentations, multimedia, public utilities, etc.

Features:

1, Max extension distance 20km (SM fiber cable).
2, Single/Duplex fiber transmission, pure hardware design, no driver needed, compatible with all operation systems, support plug, and play
3, Auto recognition of High-speed(25Mbps～480Mbps),Full-speed(500Kbps～12Mbps),Low-speed(10Kbps～1.5Mbps)USB device.
4, Support USB1.1 and USB 2.0 devices, cameras, printers, U disk, scanners, audio devices, touch screens, game controllers, mouse, and keyboard, etc.

Product specification:

USB interface(Type A):

Panel diagram:

Note:

• When the fiber and data are connected, the F & D indicator flash, otherwise off. Then the USB indicator is on when the transmitter is plugged into the USB device, otherwise off. If the indicator is not normal, need to re-plug the USB device.
• If the total power consumption of the USB device on the device side exceeds 8W, it is recommended that the USB device must use an external power supply. Otherwise, after calculating the power loss, reselect the power adapter of the extender.

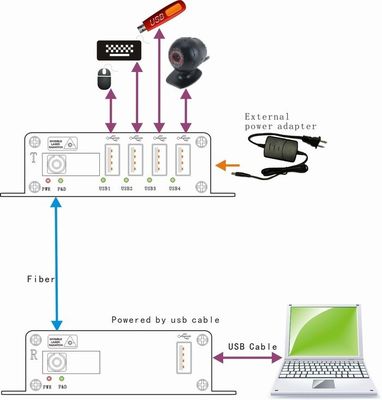

Connection diagram:
