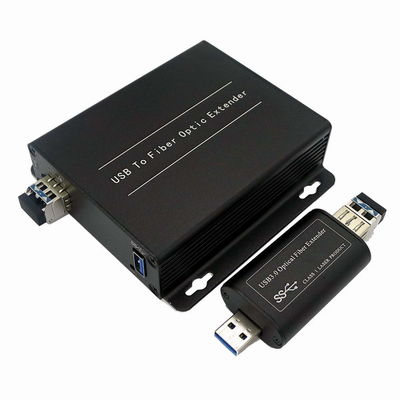

USB to Fiber Extender for PicoScope 3000

The Fiber Optic Extender is designed for Picoscope USB interface Oscilloscopes. The device includes a transmitter(device-side) and a receiver(host-side), which can extend the SuperSpeed USB 3.0 to a remote location over a 1 or 2-core fiber cable, max distance of 250m.

Feature

• Max extension distance 200m.
• plug and play, no driver needed, pure hardware design
• compatible with all operating systems,
• Duplex/Single LC fiber connecter
• Support USB3.0 SuperSpeed up to 5Gbps, USB 3.0 Type A Receptacle
• device-side Compatible with USB3.0, USB 2.0, and USB 1.1
• U3E version support all Picoscope USB interface Oscilloscope

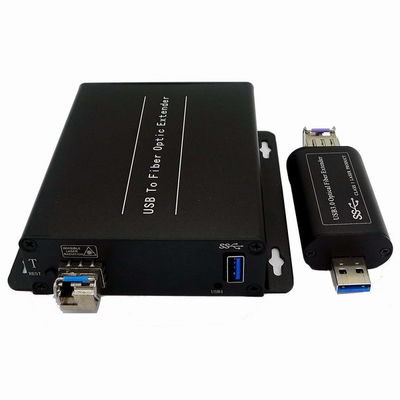

Panel diagram:

Computer side (Receiver)

Device side (Transmitter)

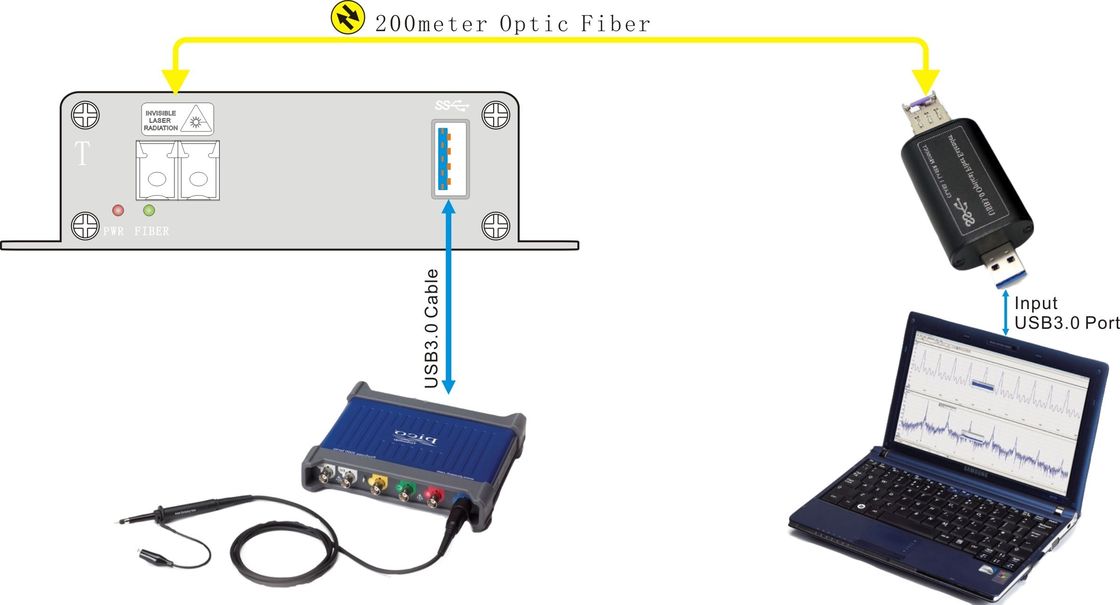

Application diagram:
