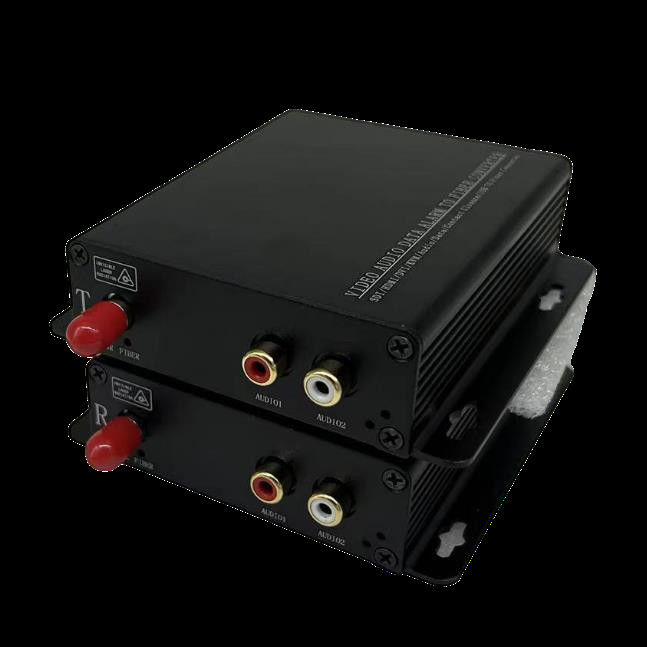

RCA audio to Fiber

OptoElectronics RCA Audio over Fiber series support 2Channel or 4 Channel simplex 24-bit digitally encoded broadcast quality audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

Opitcal:
Wavelength 1310nm&1470nm~1610nm
Output Power -14~ -8dBm / -5~0dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -30dBm
Optical connector FC,ST,SC (optional)
Distance 0~2KM (MM) / 0~20KM (SM)

Audio
Input/output Impedance 600ohm(unbalance)
Max input/output voltage 3.0Vp-p
Frequency Response 10 Hz～29kHz @±3dB
SNR > 70dB
Connector RCA

Electrical & Mechanical
Input Power Requirements: DC 5V@2A
Power Adapter: AC 90V~240V
Power Consumption: < 5W
Stand-Alone Dimensions: 104mm × 104mm × 28mm
Shipping Weight: (include Transmitter & Receiver ) 0.8kg

Environmental
Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Relative Humidity: 0% ~ 95% (non-condensing)
MTBF: >100,000 hours
