Product Details:
|

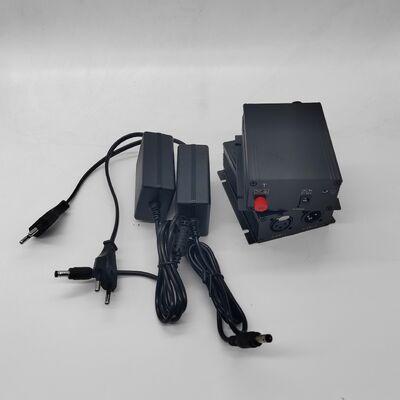

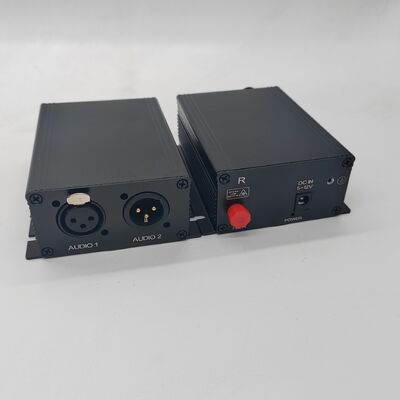

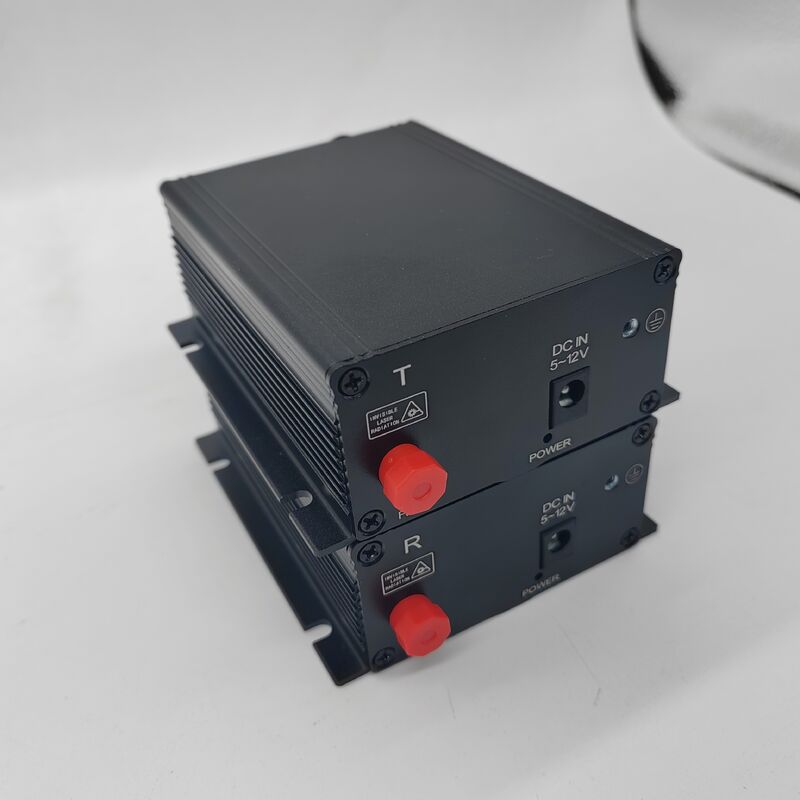

1ch bi-directional Balanced audio to Fiber or 2 ch balance audio over fiber series support 1ch bidirectional or 2 Channel balance audio 16-bit(24-bit, 32-bit also available by customization) digitally encoded broadcast quality balance audio over one multi-mode or single-mode optical fiber. These fiber optic transmitters and fiber optic receivers are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio, and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors are optional.
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.
Specifications
Optical:
| Wavelength | 1310nm&1470nm~1610nm |
| Output Power | -14~ -8dBm / -5~0dBm |
| Optic fiber | 50/125u multimode,62.5/125u multimode,9/125u single mode |
| Rx sensitivity | -30dBm |
| Optical connector | FC,ST,SC (optional) |
| Distance | 0~2KM (MM) / 0~20KM/40KM/60KM/80KM (SM) |
Balance Audio
| Number of Channels | 2 |

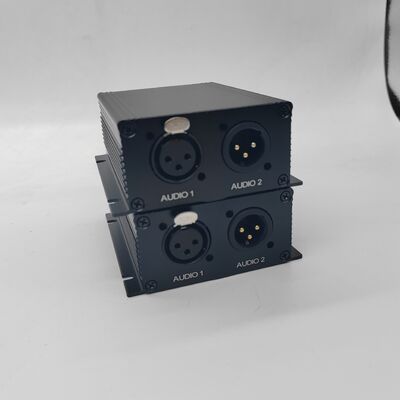

| Input Connector | XLR(female) |
| Output Connector | XLR(male) |
| Input Impedance | 10K Ohm |
| Output Impedance | 50 Ohm |
| Max input/output voltage | 1.288Vp-p |
| Frequency Response | 10 Hz～44.1kHz @±3dB |
| SNR | > 70dB |
Electrical & Mechanical
| Input Power Requirements: | DC 5V@2A or DC 12V @1A |
| Power Adapter: | AC 90V~240V |
| Power Consumption: | < 5W |
| Stand-Alone Dimensions: | 109mm × 88mm × 40mm |
| Shipping Weight: | (include Transmitter & Receiver ) 0.9kg |
Environmental
| Operating Temperature: | -20°C ~ +75°C |
| Storage Temperature: | -40°C ~ +85°C |
| Relative Humidity: | 0% ~ 95% (non-condensing) |
| MTBF: | >100,000 hours |
